HG1736-12XP-040-4NF

Antennas RF Overview

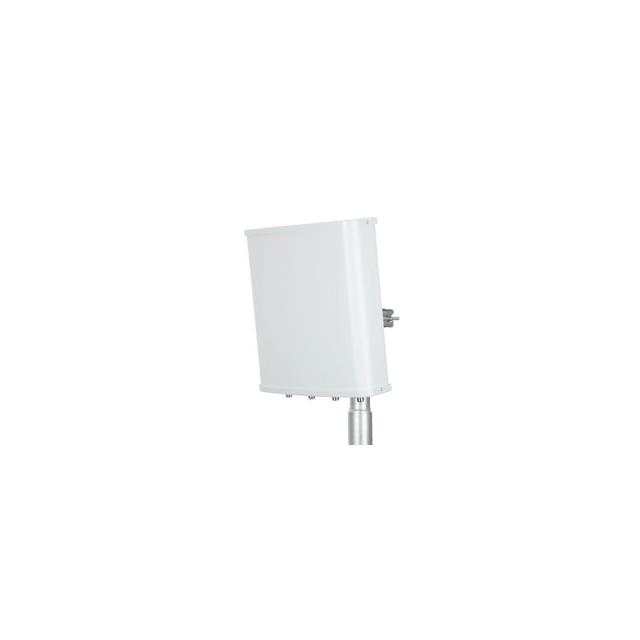

The L-com HG1736-12XP-040-4NF is a dual-band WISP panel antenna operating in the 1.71 GHz to 2.7 GHz and 3.3 GHz to 3.6 GHz ranges. It features four N-type female connectors supporting 4x4 MIMO configurations. The antenna provides 13 dBi gain in the lower band and 14 dBi gain in the upper band. It utilizes cross-polarization technology with +/- 45-degree polarization for enhanced data throughput. The unit includes mast mount hardware for installation.

Antennas RF Feature Summary

• Dual-band operation covering cellular, CBRS, LTE, and WISP frequencies
• Cross-polarized design with +/- 45-degree polarization angles
• Four independent ports for 4x4 MIMO connectivity
• Includes mounting hardware for pole or mast installation

Antennas RF Applications

• Wireless Internet Service Provider (WISP) base stations
• Cellular and mobile network infrastructure
• CBRS and LTE distribution systems
• Distributed Antenna Systems (DAS)

Antennas RF Procurement Notes

Verify the specific frequency bands required for your deployment against the 1.71–2.7 GHz and 3.3–3.6 GHz specifications. Confirm that the N-type female connector interface matches your existing cable assemblies. Ensure the mounting environment supports the physical dimensions and weight of the panel antenna. Check local regulations regarding transmission power and frequency usage for the target application bands before procurement.

Antennas RF Selection Notes

Select this model when dual-band coverage across sub-GHz and 3.5 GHz spectrum is necessary for high-throughput applications. The 4-port configuration is suitable for advanced MIMO setups requiring spatial multiplexing. Consider the cross-polarization benefits for reducing interference in dense signal environments. Evaluate the gain requirements, as the 13–14 dBi range offers directional performance suitable for point-to-point or point-to-multipoint links.

Antennas RF Part Context

This component belongs to L-com's RF antenna portfolio, specifically designed for wireless infrastructure. It serves as a specialized solution for broadband wireless access and cellular backhaul. The product line emphasizes robust construction and multi-band capability to support evolving telecommunications standards. It complements other L-com RF components by providing standardized interfaces and reliable radiation patterns for professional installations.

Antennas RF Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. When evaluating alternatives, ensure compatibility with the 1.71–2.7 GHz and 3.3–3.6 GHz bands. Verify that replacement units maintain the 4-port N-type female interface and similar gain characteristics. Cross-polarization specifications must match to preserve MIMO performance integrity.
