HG1908P-NF

Antennas RF Overview

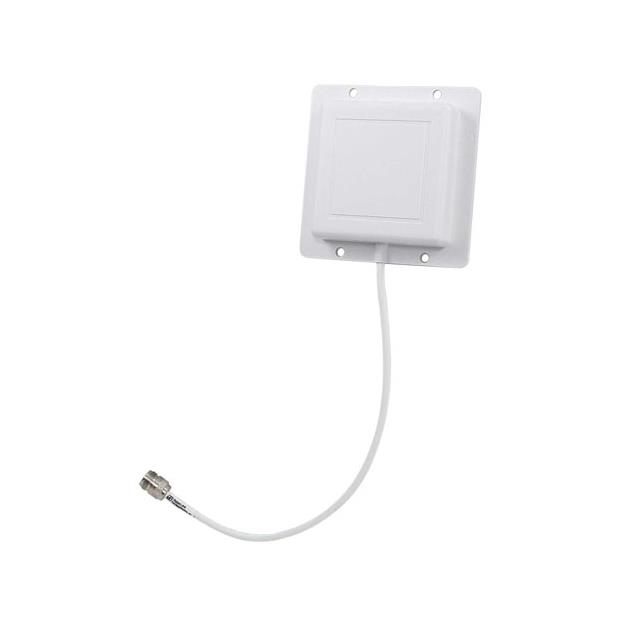

The L-com HG1908P-NF is a flat patch antenna designed for operation at 1.9 GHz, providing an 8 dBi gain with broad coverage capabilities. It features an N female connector and includes a 12-inch (30.5 cm) pigtail cable. The unit measures 4 inches (10.2 cm) square and is engineered for both indoor and outdoor deployment scenarios.

Antennas RF Feature Summary

• Compact flat patch design suitable for space-constrained installations
• Broad coverage pattern optimized for wide-area signal distribution
• Integrated N female connector for standard coaxial interfacing

Antennas RF Applications

• Mobile repeater systems requiring reliable signal extension
• Indoor wireless coverage enhancement in commercial environments
• Outdoor point-to-point or point-to-multipoint links at 1.9 GHz

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector polarity. Ensure compatibility with existing N-type cabling infrastructure. Confirm environmental rating requirements for intended installation location before finalizing procurement.

Antennas RF Selection Notes

Select this model when 8 dBi gain is sufficient for the link budget at 1.9 GHz. Consider the 12-inch pigtail length for proximity mounting. Evaluate alternative models if higher gain or different connector types are required for specific network architectures.

Antennas RF Part Context

This component belongs to L-com's HyperLink Wireless series of flat patch antennas. It shares design characteristics with other models in the HG19xx family, offering standardized performance metrics for Wi-Fi and cellular frequency bands. The NF suffix denotes the N female connector configuration.

Antennas RF Replacement Considerations

Direct substitutes include HG1908P variants with different connector options. Verify that replacement units maintain identical 1.9 GHz frequency operation and 8 dBi gain specifications to ensure consistent system performance without re-engineering.
