HG1911U-PRO

Antennas RF Overview

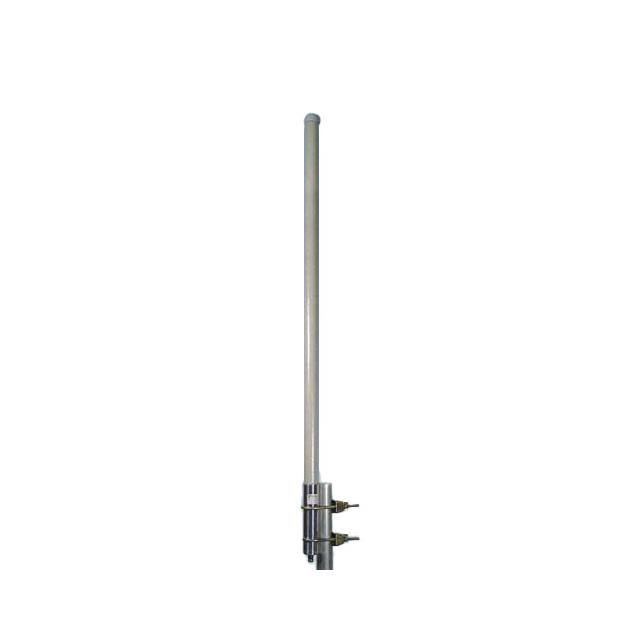

The L-com HG1911U-PRO is a high-performance omnidirectional whip antenna engineered for the Personal Communications Services (PCS) band, specifically operating within the 1.88 to 1.99 GHz frequency range. It provides a nominal gain of 11 dBi with a 50-ohm impedance and utilizes an N-type female connector for secure attachment. The unit features a straight mast mount design, suitable for fixed installations requiring consistent signal coverage in multipoint communication environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern ensures uniform signal distribution around the vertical axis
• High gain performance optimized for the 1900 MHz PCS band
• Straight whip design facilitates straightforward mast mounting applications

Antennas RF Applications

• Multipoint Personal Communications Services (PCS) networks
• Cellular base station uplink and downlink connections
• Fixed wireless communication links in the 1.9 GHz spectrum

Antennas RF Procurement Notes

Verify that the required connector type matches the N-type female specification on the HG1911U-PRO. Confirm operational frequency alignment with the 1.88 to 1.99 GHz range to ensure compatibility with existing PCS infrastructure. Check mechanical mounting requirements against the straight mast mount design before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a dedicated omnidirectional solution is required for the 1900 MHz band. The 11 dBi gain offers enhanced range compared to standard low-gain antennas. Ensure the installation environment supports the physical dimensions and weight of the straight whip configuration for stable mast mounting.

Antennas RF Part Context

This component belongs to the HyperGain series of RF antennas from L-com. The series focuses on high-performance solutions for specific cellular and wireless bands. The HG1911U-PRO serves as a specialized variant targeting the PCS frequency segment, distinct from other models covering different spectral ranges like 2.4 GHz or 800 MHz.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
