HG1912P-NF

Antennas RF Overview

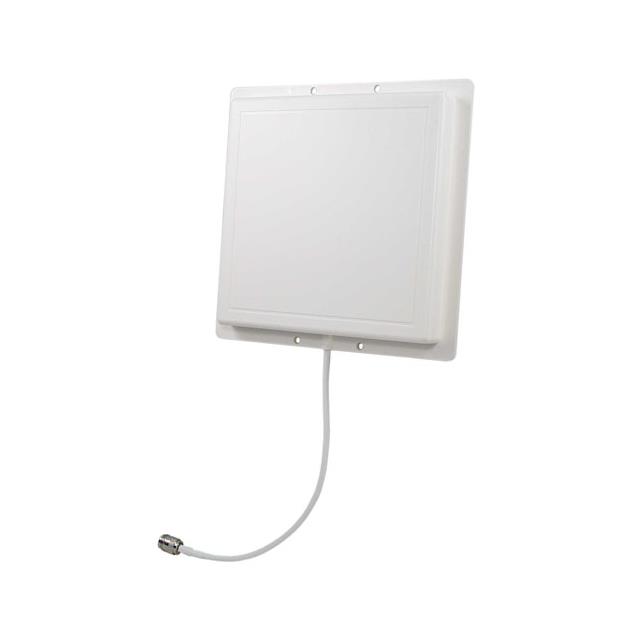

The L-com HG1912P-NF is a high-performance flat patch antenna designed for operation at 1.9 GHz. It features an N female connector and provides a gain of 12 dBi with very broad coverage capabilities. The unit includes a 12-inch (30.5 cm) pigtail cable and measures 8 inches (20.3 cm) square, making it suitable for mast mount installations.

Antennas RF Feature Summary

• Compact flat patch design for broad area coverage
• High performance 12 dBi gain at 1.9 GHz
• Includes integrated 12-inch pigtail with N female connector

Antennas RF Applications

• Wide area wireless coverage requiring broad signal distribution
• Indoor installation scenarios needing compact antenna solutions
• Mast mount configurations for fixed wireless links

Antennas RF Procurement Notes

Verify the specific part number HG1912P-NF against official L-com documentation to ensure correct connector type and frequency specifications. Confirm that the included pigtail length and mounting requirements align with your system design before procurement.

Antennas RF Selection Notes

Select this model when broad coverage and high gain are required in a compact form factor. Ensure compatibility with N female interfaces and verify that the 1.9 GHz operating frequency matches the target network infrastructure requirements.

Antennas RF Part Context

This component belongs to the L-com HyperLink Wireless series, which offers various antenna solutions for wireless communication systems. The HG1912P-NF specifically addresses needs for high-gain patch antennas in the 1.9 GHz band.

Antennas RF Replacement Considerations

Consider the HG1908P-NF from the same manufacturer if different gain or size specifications are required. Verify functional equivalence through official datasheets before substitution.
