HG2314DP-065-8NF

Antennas RF Overview

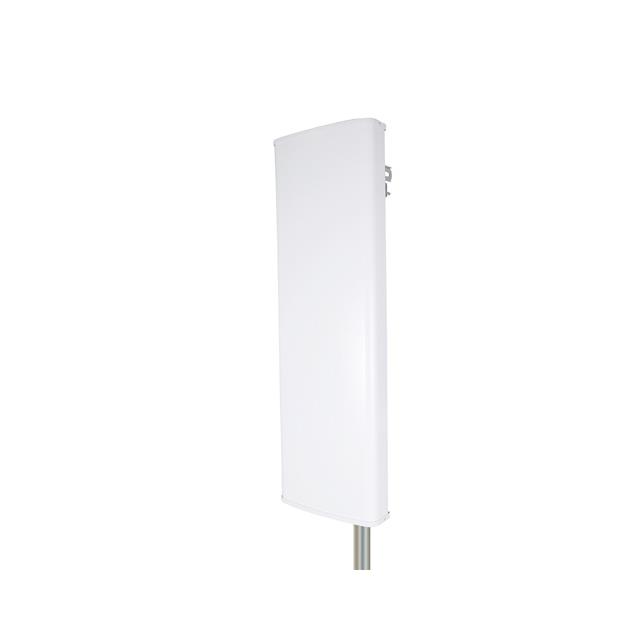

The HG2314DP-065-8NF is a dual-polarized sector antenna manufactured by L-com, designed for macro base station and small cell deployments. It operates within the 2300 MHz to 2700 MHz frequency range, providing a gain of 14 dBi. The antenna features a 65-degree beamwidth and utilizes eight Type N female connectors to support MIMO configurations.

Antennas RF Feature Summary

• Dual polarization design supporting high-performance sector coverage
• Eight-port configuration enabling flexible MIMO network integration
• Robust construction suitable for both macro and small cell environments

Antennas RF Applications

• Macro base station deployments
• Small cell network infrastructure
• Wireless Internet Service Provider (WISP) systems

Antennas RF Procurement Notes

Verify the specific connector type and port count against system requirements before ordering. Confirm that the 2300-2700 MHz operational band aligns with local regulatory spectrum allocations. Ensure mounting hardware compatibility with existing site structures. Cross-reference the manufacturer datasheet for precise environmental ratings and electrical specifications to guarantee reliable performance in the intended deployment scenario.

Antennas RF Selection Notes

Select this model when deploying infrastructure requiring 14 dBi gain within the 2.3 GHz to 2.7 GHz band. The 65-degree beamwidth offers optimal coverage for sectorized layouts. Consider the eight-port interface if utilizing advanced MIMO technologies. Evaluate physical dimensions and weight constraints relative to tower or pole mounting capabilities to ensure structural integrity during installation.

Antennas RF Part Context

This component belongs to L-com's HG series of high-performance antennas. It complements other sector models like the HG2364-14DP-065-8NF, which supports additional frequency bands. The series focuses on delivering reliable RF performance for wireless communication networks, maintaining consistency in build quality and electrical characteristics across similar product lines.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available.
