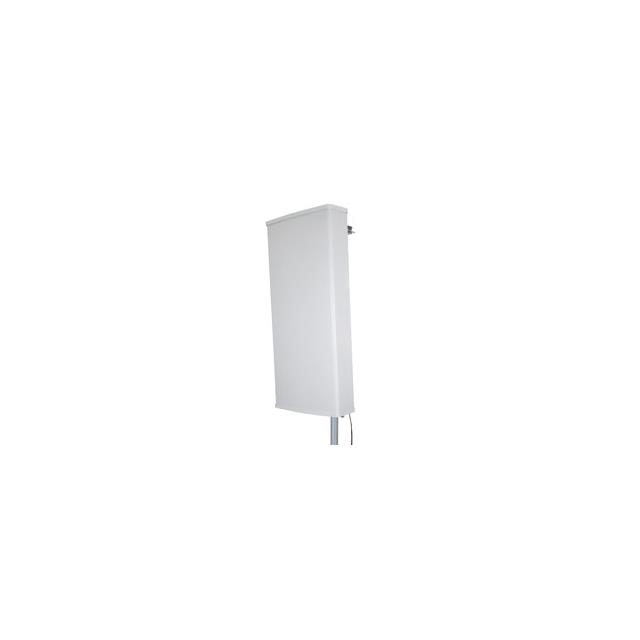

HG2327-17XP-065-8NF

HG2327-17XP-065-8NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 2.3 GHZ TO 2.7 GHZ 8-PORT SECTOR. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2327-17XP-065-8NF

• Description：2.3 GHZ TO 2.7 GHZ 8-PORT SECTOR
• Series：HG
• Mfr：L-com
• Package：Bulk
• RF Family/Standard：Cellular, WiFi
• Frequency Group：UHF (2GHz ~ 3GHz)
• Frequency (Center/Band)：2.5GHz
• Frequency Range：2.3GHz ~ 2.7GHz
• Antenna Type：Sector
• Number of Bands：1
• VSWR：1.7
• Return Loss：-
• Gain：17dBi
• Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
• Termination：N Type Female (8)
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Mast Mount
• Height (Max)：5.610" (142.49mm)
• Applications：4G, 5G, DAS, LTE, Wi-Fi, WISP, WLAN
• Power - Max：100 W
