HG2358-18XP-065-2NF

Antennas RF Overview

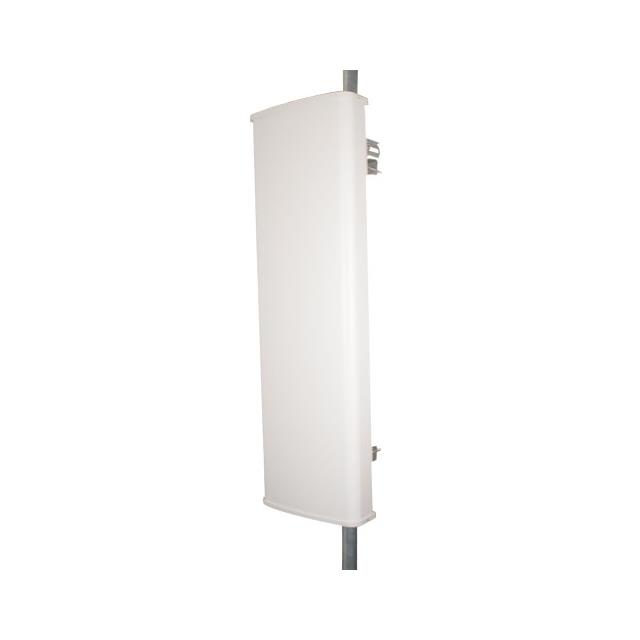

The HG2358-18XP-065-2NF is a dual-band MIMO sector antenna manufactured by L-com. It operates within the frequency ranges of 2300–2700 MHz and 5150–5850 MHz, providing gains of 17 dBi and 20 dBi respectively. The antenna features a 65-degree horizontal beamwidth and utilizes a +/-45 degree polarization configuration. It is equipped with four N-type female connectors for termination and supports a maximum power handling capacity of 100 W.

Antennas RF Feature Summary

• Dual-band MIMO capability supporting Wi-Fi and cellular frequencies
• Sector design with 65-degree horizontal coverage
• High gain performance across specified bands
• Robust construction suitable for outdoor mast mounting

Antennas RF Applications

• Wi-Fi network expansion in commercial environments
• Distributed Antenna Systems (DAS) deployment
• Wireless Internet Service Provider (WISP) infrastructure
• LTE and 4G/5G small cell backhaul

Antennas RF Procurement Notes

Verify the specific cable length option required during ordering, as this model is available with various pre-installed cable lengths including 305mm, 1.524m, 3.048m, and 7.62m. Confirm that the N-type female terminations match your existing feed line hardware. Ensure the selected unit meets the environmental ratings for the intended installation site.

Antennas RF Selection Notes

Select this model when high-gain directional coverage is needed for dual-band operations. The 65-degree beamwidth balances coverage area with signal focus. Verify compatibility with both 2.3 GHz and 5.8 GHz spectrum requirements. The +/-45 polarization aids in reducing multipath interference in dense wireless environments.

Antennas RF Part Context

This component belongs to L-com's HG series of sector antennas designed for wideband applications. It is part of a family offering various beamwidths and connector types to suit different site planning needs. The model specifically addresses the need for integrated Wi-Fi and cellular support in a single physical unit.

Antennas RF Replacement Considerations

For similar specifications, consider the HG2358-18XP-090-2NF which offers a 90-degree beamwidth. The HG2364-18XP-065-4NF provides a similar form factor but may differ in connector configuration or specific band tuning. Always cross-reference datasheets for exact electrical parameter matches before substitution.
