HG2371-17XP-090-4NF

Antennas RF Overview

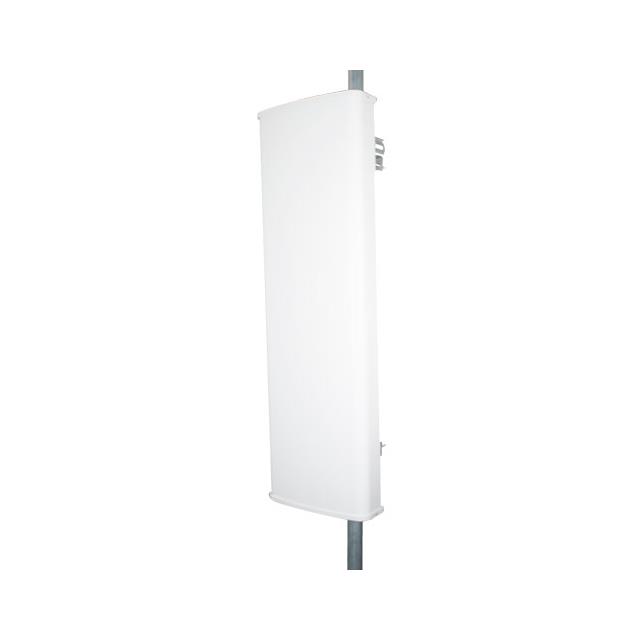

The L-com HG2371-17XP-090-4NF is a cross-polarized MIMO flat panel antenna designed for the 2400 MHz to 2500 MHz frequency range. It features a high gain of 17 dBi and includes four independent ports with N-type female connectors, supporting 2x2 or 4x4 MIMO configurations. The unit integrates two vertically and two horizontally polarized multi-element antennas within a single housing. It provides a horizontal beamwidth of 35 degrees and a vertical beamwidth of 15 degrees. The antenna utilizes +/- 45-degree tilted polarization to enhance data throughput and signal isolation.

Antennas RF Feature Summary

• Integrates four high-gain antennas into a single compact housing for efficient space utilization
• Employs advanced cross-polarization technology to improve radio interoperability and reduce interference from adjacent channels
• Features a heavy-duty ABS plastic radome constructed for durability in high-density outdoor environments
• Includes tilt and rotation mast mounting hardware for rapid alignment and flexible installation angles

Antennas RF Applications

• 2.4 GHz band point-to-multipoint wireless links
• Point-to-point microwave communication systems
• Access points and routers requiring multiple antenna ports
• High-density outdoor wireless network deployments

Antennas RF Procurement Notes

Verify the specific model number against official L-com documentation to confirm connector type and polarization specifications. Ensure compatibility with existing access point interfaces before procurement. Confirm environmental ratings match the intended deployment location. Request updated technical datasheets directly from authorized distributors to validate current manufacturing standards and component availability.

Antennas RF Selection Notes

Select this antenna when high gain and spatial diversity are required for 2.4 GHz applications. The four-port design supports advanced MIMO protocols for increased bandwidth. Consider the physical dimensions and mounting requirements for pole installations. Evaluate the need for cross-polarization to mitigate co-channel interference in dense RF environments. Match the connector type to the transmitting equipment interface.

Antennas RF Part Context

This component belongs to L-com's professional-grade RF antenna portfolio, specifically engineered for robust wireless infrastructure. It addresses the demand for high-performance solutions in crowded spectrum bands. The design prioritizes signal integrity and ease of installation for commercial and industrial networking scenarios.

Antennas RF Replacement Considerations

Consult L-com official documentation for direct substitute part numbers with identical electrical characteristics. Verify that any alternative maintains the 17 dBi gain and four-port configuration. Ensure mechanical compatibility with existing mounting hardware. Cross-reference connector types to avoid adapter usage.
