HG2400RDR90-RSP

Antennas RF Overview

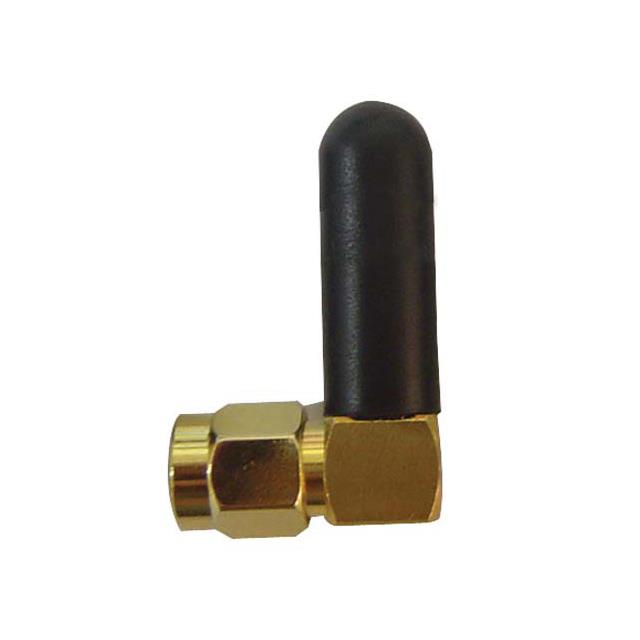

The HG2400RDR90-RSP is a HyperGain wireless LAN antenna operating within the 2.4 GHz to 2.5 GHz frequency range. It provides 0 dBi gain with an omni-directional radiation pattern, suitable for broad coverage applications. The component features a rigid 90-degree stub design utilizing a rubber duck construction. It employs an RP-SMA plug connector for mounting. The antenna supports IEEE 802.11b/g/n standards, Bluetooth, ISM bands, and general WLAN operations.

Antennas RF Feature Summary

• Omni-directional radiation pattern for broad signal coverage
• Rigid 90-degree stub configuration with rubber duck construction
• RP-SMA plug connector interface

Antennas RF Applications

• 802.11b/g/n Wireless LAN systems
• Bluetooth connectivity devices
• ISM band industrial applications
• General WLAN infrastructure

Antennas RF Procurement Notes

Verify the specific connector gender and pin configuration against the target device interface requirements. Confirm that the rigid 90-degree form factor aligns with available spatial clearance in the installation environment. Ensure the RP-SMA plug matches the mating jack specifications of the host equipment to prevent mechanical interference or signal loss.

Antennas RF Selection Notes

Select this model when a low-profile, rigid antenna solution is required for 2.4 GHz wireless applications. The 0 dBi gain specification indicates a baseline performance level suitable for standard range requirements rather than long-distance directional links. Consider the physical dimensions of the stub design to ensure compatibility with the enclosure constraints of the integrating electronic system.

Antennas RF Part Context

This component belongs to the L-com HyperGain series of RF antennas. It is designed as a compact replacement or integration option for wireless modules requiring standardized 2.4 GHz connectivity. The part number suffix typically denotes specific connector types and orientation variations within the product family.

Antennas RF Replacement Considerations

Direct substitutes must match the 2.4 GHz frequency range, RP-SMA plug interface, and 0 dBi gain characteristics. Verify that alternative models maintain the rigid 90-degree stub geometry if space constraints are critical. Cross-reference manufacturer datasheets to confirm identical electrical performance and mechanical mounting specifications.
