HG2401PUE-100IPEX

Antennas RF Overview

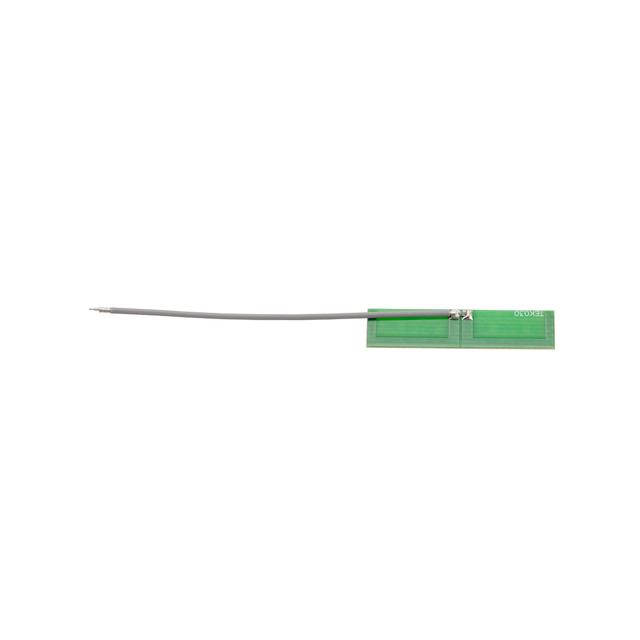

The HG2401PUE-100IPEX is an embedded omnidirectional PCB antenna designed for wireless device integration. It operates within the 2.4 GHz frequency band, specifically covering 2.4 GHz to 2.5 GHz. The component provides a gain of 1 dBi and utilizes an IPEX connector interface. Its physical dimensions are optimized for compact embedding within electronic enclosures.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for general wireless coverage
• Embedded design intended for direct integration into device structures
• Compact form factor facilitating installation in space-constrained applications

Antennas RF Applications

• Wireless devices requiring embedded connectivity
• IoT modules needing integrated RF solutions
• Portable electronics with limited internal space

Antennas RF Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to ensure correct connector type and impedance matching. Confirm that the IPEX connector variant aligns with your board layout requirements. Cross-reference the part number with official L-Com specifications to validate performance parameters before procurement.

Antennas RF Selection Notes

Select this component when a low-profile, embedded solution is required for 2.4 GHz operations. Ensure the host device allows for proper antenna placement to maintain signal integrity. Compare the 1 dBi gain against system link budget requirements to confirm adequate coverage for the intended application environment.

Antennas RF Part Context

This model belongs to L-Com's line of embedded PCB antennas. It is distinct from higher-gain variants like the HG2402 series. The product focuses on minimal footprint integration rather than extended range, serving as a foundational RF component for basic wireless communication needs in consumer electronics.

Antennas RF Replacement Considerations

Direct substitutes include other L-Com embedded 2.4 GHz PCB antennas with identical IPEX interfaces. Verify mechanical dimensions and mounting hole patterns match the existing design. Check if alternative models offer different gain levels while maintaining the same connector standard.
