HG2402FPU-100IPEX

Antennas RF Overview

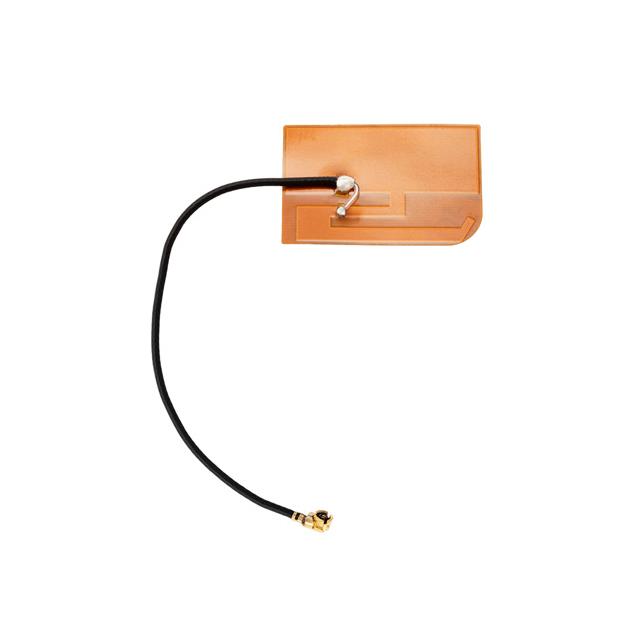

The HG2402FPU-100IPEX is a flexible PCB antenna designed for embedded applications. It operates at a frequency of 2400 MHz with a gain of 2.5 dBi. The component features an IPEX connector and has physical dimensions of 27x18 mm. It is classified as an omnidirectional antenna suitable for wireless device integration.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• Flexible PCB construction for compact embedding
• Integrated IPEX connector interface

Antennas RF Applications

• Embedded wireless devices requiring integrated antennas
• IoT modules needing compact RF solutions
• Portable electronics with space constraints

Antennas RF Procurement Notes

Verify the specific connector type and mechanical fit before ordering. Confirm that the operating frequency aligns with your system requirements. Ensure the flexible PCB form factor meets your enclosure design constraints. Check for any regulatory certifications required for your target market.

Antennas RF Selection Notes

Choose this model when space is limited and a low-profile solution is necessary. The flexible nature allows for adaptation to curved surfaces. Consider the IPEX interface compatibility with your host board. Evaluate the 2.5 dBi gain against your range requirements.

Antennas RF Part Context

This component belongs to L-com's line of embedded antennas. It is designed for high-volume manufacturing environments where size and profile are critical. The product supports modern wireless standards requiring reliable short-range communication.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs before considering alternatives.
