HG2402PU-UFL is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI PCB 2.4GHZ 2DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2402PU-UFL
- Description：ANTOMNI PCB 2.4GHZ 2DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：PCB Trace
- Number of Bands：1
- VSWR：2.3
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：IPX, U.FL
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：0.040" (1.02mm)
- Applications：802.11b/g/n, Bluetooth, Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for HG2402PU-UFL
Antennas RF Overview

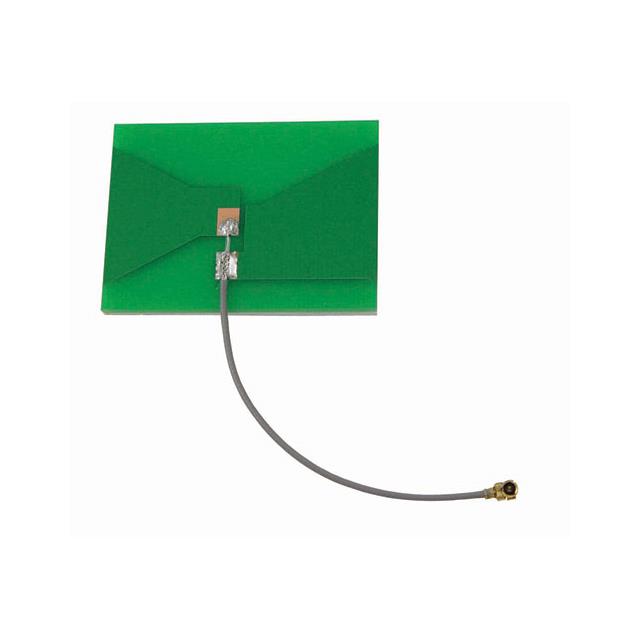

The HG2402PU-UFL is a 2.4 GHz embedded omni-directional RF antenna manufactured by L-com, designed for direct integration into wireless devices. It operates within the 2.4 to 2.5 GHz frequency range, supporting WiFi and Bluetooth applications. The component features a gain of 2 dBi and utilizes a U.FL / I-Pex connector interface. A 1.13mm coax lead terminates the unit, allowing for flexible installation in compact electronic systems requiring reliable wireless connectivity.
Antennas RF Feature Summary
- Omni-directional radiation pattern for consistent signal coverage
- Embedded design suitable for direct device integration
- Supports WiFi and Bluetooth wireless protocols
Antennas RF Applications
- WiFi modules
- Bluetooth devices
- Wireless IoT sensors
- Embedded communication hardware
Antennas RF Procurement Notes
Verify the specific connector type and cable length requirements against the target device schematic before ordering. Confirm that the U.FL mating connector on the host PCB matches the HG2402PU-UFL termination. Ensure the operating environment does not exceed the antenna's specified frequency range of 2.4 to 2.5 GHz for optimal performance.
Antennas RF Selection Notes
Select this model when a low-profile, embedded solution is required for 2.4 GHz wireless standards. The integrated U.FL connector simplifies assembly compared to bulkier external antennas. Consider the 2 dBi gain level for standard indoor or short-range outdoor applications where high-gain directional antennas are unnecessary.
Antennas RF Part Context
This component belongs to the HyperLink series of RF antennas from L-com, which focuses on providing versatile connectivity solutions for modern electronics. The HG2402PU-UFL specifically addresses the need for compact, reliable antennas in space-constrained wireless modules, complementing other L-com products like cables and connectors.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing PCB layouts if considering alternative models.
