HG2402PUL-100IPEX

Antennas RF Overview

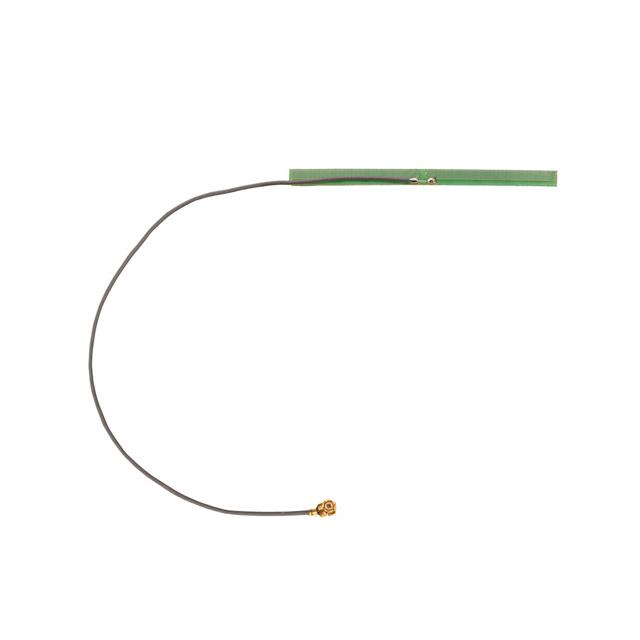

The HG2402PUL-100IPEX is a PCB antenna manufactured by L-com, designed for operation within the 2.4 to 2.5 GHz frequency range. It provides an omnidirectional radiation pattern with a gain of 2 dBi and features a 50-ohm impedance. The component includes an IPEX connector for integration into wireless devices. Physical dimensions are specified as 48x3mm, utilizing adhesive mounting for secure attachment.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for general wireless coverage
• Integrated adhesive backing for direct PCB surface mounting
• Compact physical profile designed for embedded device integration

Antennas RF Applications

• Wireless communication modules requiring embedded antennas
• IoT devices needing compact RF solutions
• Industrial equipment with space-constrained internal layouts

Antennas RF Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer documentation may be hosted on distributor platforms rather than directly on the manufacturer's primary site. Confirm that the IPEX connector type matches the target board layout. Ensure the adhesive mounting method aligns with the mechanical design constraints of the final assembly before procurement.

Antennas RF Selection Notes

Select this model when a low-profile, omnidirectional solution is required for the 2.4 GHz ISM band. The 2 dBi gain offers standard performance for short-range applications. Consider the 48x3mm footprint during PCB layout planning. This part is intended for permanent embedding rather than external cabled connections.

Antennas RF Part Context

This component belongs to L-com's line of embedded RF antennas designed for seamless integration into consumer and industrial electronics. It serves as a direct replacement or upgrade for older discrete antenna designs in compact form factors. The product supports modern wireless standards operating in the 2.4 GHz spectrum.

Antennas RF Replacement Considerations

The HG2402FPU-100IPEX is a related flex PCB variant from the same manufacturer offering similar electrical characteristics but with different mechanical flexibility properties. Verify mechanical fit and connector compatibility when considering alternative models.
