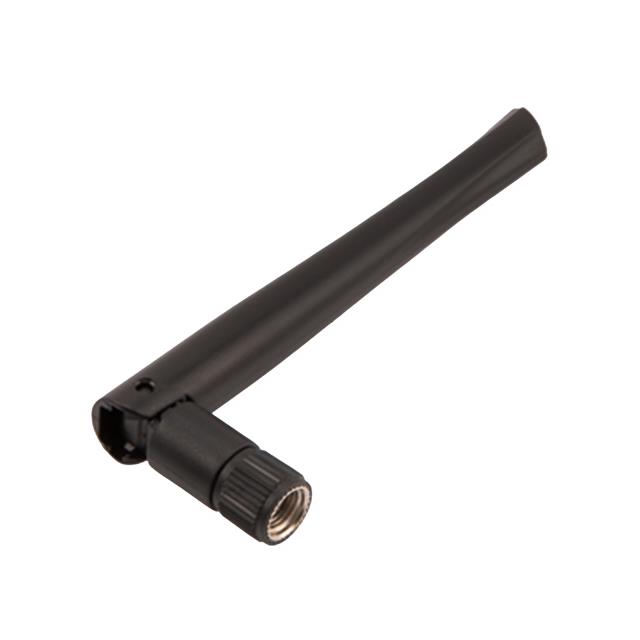

HG2402RD-1-RSF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 2DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2402RD-1-RSF
- Description：ANTRUBBER DUCK 2.4GHZ 2DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Right Angle
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount, Magnetic
- Height (Max)：4.315" (109.60mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：10 W
Antennas RF datasheet and documents for HG2402RD-1-RSF
Antennas RF Overview
The HG2402RD-1-RSF is a flexible omnidirectional rubber duck antenna designed for the 2.4 GHz ISM band, specifically covering 2.4 to 2.5 GHz. It provides a gain of 2 dBi and operates with a 50 ohm impedance. The component features an RP-SMA plug connector and supports applications including WiFi, WLAN, Bluetooth, and IoT systems. Maximum operating temperature is rated at 85 °C.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for broad coverage
- Flexible rubber duck construction for easy installation
- RP-SMA plug interface for direct connection
Antennas RF Applications
- WiFi and WLAN systems
- Bluetooth devices
- ISM band operations
- IoT wireless modules
Antennas RF Procurement Notes
Verify the specific part number suffix against official L-com documentation to confirm connector type and frequency range. Ensure compatibility with host device interfaces before procurement. Cross-reference technical specifications with current datasheets to validate performance parameters and environmental ratings.
Antennas RF Selection Notes
Select this antenna for applications requiring a compact, flexible solution in the 2.4 GHz spectrum. Consider the RP-SMA connector type for compatibility with existing hardware. Evaluate the 2 dBi gain requirement against system link budget needs. Confirm environmental suitability for intended operational temperatures.
Antennas RF Part Context
This component belongs to L-com's line of RF antennas, specifically categorized as a rubber duck style antenna. It is engineered for economical yet high-performance wireless communication tasks within the industrial, scientific, and medical frequency bands.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify exact electrical and mechanical specifications when sourcing alternatives from other manufacturers.
