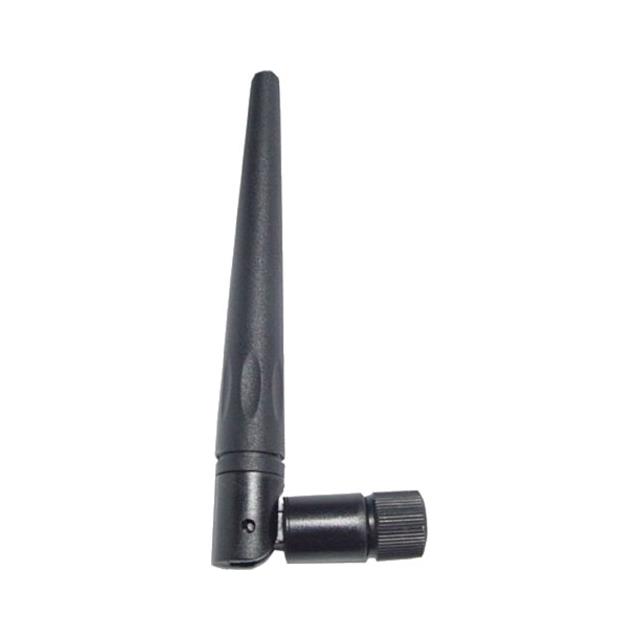

HG2402RD-RSF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 2DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2402RD-RSF
- Description：ANTRUBBER DUCK 2.4GHZ 2DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2.2dBi
- Features：-
- Termination：RP-SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.130" (104.90mm)
- Applications：802.11b/g/n, Bluetooth, ISM
- Power - Max：-
Antennas RF datasheet and documents for HG2402RD-RSF
Antennas RF Overview
The HG2402RD-RSF is a HyperLink Wireless 2.4 GHz Omni-Directional Rubber Duck Antenna manufactured by L-com. It operates within a frequency range of 2400 MHz to 2500 MHz, providing a gain of 2.2 dB. The component features an RP-SMA plug connector for interface compatibility. Designed as a base station or broadcast transmission antenna, it supports applications including WiFi, WLAN, Bluetooth, ISM, and IoT systems. The unit is individually packaged in accordance with L-COM specification PKG-00031.
Antennas RF Feature Summary
- Omni-directional radiation pattern suitable for broad coverage applications
- Rubber duck construction for flexible mounting and durability
- Integrated RP-SMA plug connector for direct equipment attachment
Antennas RF Applications
- WiFi and WLAN network infrastructure
- Bluetooth communication devices
- ISM band industrial applications
- IoT sensor networks
- Base station and broadcast transmission systems
Antennas RF Procurement Notes
Verify the specific part number suffix against official L-com documentation to ensure correct connector type and packaging specifications. Confirm RoHS compliance status through authorized distributors. Request the official datasheet PDF to validate electrical parameters such as frequency range and gain before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when an omni-directional 2.4 GHz antenna with integrated RP-SMA connectivity is required. Consider the rubber duck form factor for installations needing flexibility. Ensure the application environment supports the specified frequency range and that the connector polarity matches existing system interfaces.
Antennas RF Part Context
This component belongs to the HyperLink Wireless series by L-com, focusing on reliable short-range wireless communication solutions. The HG2402RD-RSF variant specifically addresses 2.4 GHz band requirements using a standard rubber duck design. It serves as a foundational RF component for various consumer and industrial wireless protocols operating in the unlicensed spectrum.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult L-com technical support for cross-reference information regarding equivalent antennas with similar gain and connector specifications.
