HG2402RDR-RSP

Antennas RF Overview

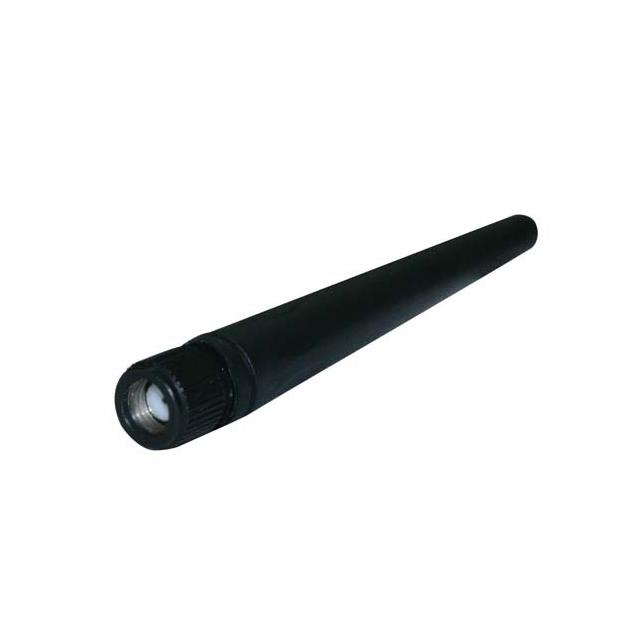

The HG2402RDR-RSP is an omnidirectional rubber duck antenna designed for the 2.4 GHz ISM band, supporting IEEE 802.11b/g/n wireless LAN and WiFi applications. It features a straight RP-SMA connector mount with magnetic base. The component operates within a frequency range of 2.4 to 2.5 GHz, providing a gain of 2 dBi. It utilizes a quarter-wave monopole electric wave configuration with a nominal impedance of 50 Ohms. The voltage standing wave ratio (V.S.W.R.) is specified as less than 2.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for general coverage
• Integrated magnetic mounting base for flexible placement
• Quarter-wave monopole design optimized for 2.4 GHz ISM band

Antennas RF Applications

• IEEE 802.11b/g/n wireless LAN WiFi applications
• Public wireless network infrastructure
• Bluetooth connectivity systems
• ISM band industrial equipment

Antennas RF Procurement Notes

Verify the specific connector type and polarity against system requirements before purchase. Confirm that the magnetic base meets mechanical stability needs for the intended installation environment. Ensure compatibility with existing RF interfaces to prevent signal mismatch issues during integration.

Antennas RF Selection Notes

Select this model when a compact, low-profile antenna solution is required for indoor or portable devices. The magnetic base facilitates temporary or semi-permanent installation without permanent mounting hardware. Consider the 2 dBi gain level for standard range applications where high-gain directional antennas are unnecessary.

Antennas RF Part Context

This component belongs to L-com's HyperLink Wireless series of RF antennas. It is part of a family of rubber duck antennas designed for various frequency bands. The HG2402RDR-RSP specifically targets the 2.4 GHz spectrum, distinguishing it from models operating in UHF, VHF, or 5 GHz ranges within the same product line.

Antennas RF Replacement Considerations

The HG2402RDR-1-RSP is a documented variant within the same product family. Verify if the suffix change indicates any functional differences in connector orientation or cable length before substituting.
