HG2403-SDC-3RTP

Antennas RF Overview

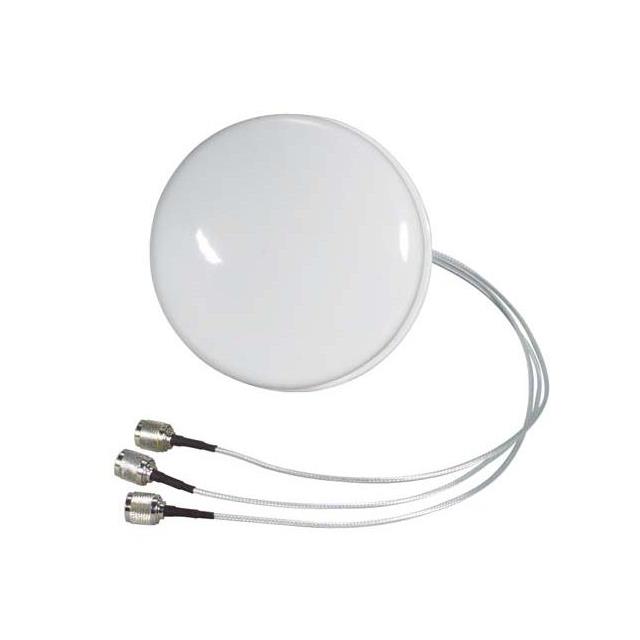

The HG2403-SDC-3RTP is a 2.4 GHz MIMO omni-directional ceiling mount antenna designed for 802.11b/g/n wireless networks. It features three independent antenna elements within a single package to provide spatial diversity. The unit offers a gain of 3 dBi and utilizes an RP-TNC connector interface. This RF antenna is engineered for indoor ceiling installation, supporting Wi-Fi applications with a focus on reliable signal distribution in multi-element configurations.

Antennas RF Feature Summary

• Integrates three independent antenna elements into a single package for spatial diversity
• Designed as a ceiling mount solution for indoor wireless network deployment
• Supports 802.11b/g/n standards with 3 dBi gain performance

Antennas RF Applications

• Indoor Wi-Fi network infrastructure
• Ceiling-mounted wireless access point integration
• 802.11b/g/n spatial diversity deployments

Antennas RF Procurement Notes

Verify the specific connector type matches system requirements, as this model uses an RP-TNC interface rather than standard TNC. Confirm that the ceiling mount form factor aligns with the physical installation environment. Ensure compatibility with 2.4 GHz frequency bands and 802.11b/g/n protocols before procurement. Cross-reference the part number with official L-com documentation to confirm current manufacturing status.

Antennas RF Selection Notes

Select this component when a compact, multi-element solution is required for indoor 2.4 GHz coverage. The integrated design simplifies cabling compared to separate antennas. Consider the RP-TNC connector requirement against existing cable assemblies. Evaluate the 3 dBi gain against site-specific propagation needs. This model is suitable for environments where ceiling mounting is preferred over wall or pole installations.

Antennas RF Part Context

This antenna belongs to the HyperLink Wireless SDC series by L-com, which specializes in spatial diversity MIMO solutions. The series focuses on combining multiple antenna elements to improve signal reliability in wireless networks. The HG2403 variant specifically targets the 2.4 GHz band, distinguishing it from other frequency-specific models within the broader product line.

Antennas RF Replacement Considerations

The HG2403-SDC-3NF is a documented substitute option within the same series, offering similar 2.4 GHz spatial diversity capabilities but utilizing an N-type connector instead of RP-TNC. Verify connector compatibility when considering this alternative.
