HG2403FPU-100IPEX

Antennas RF Overview

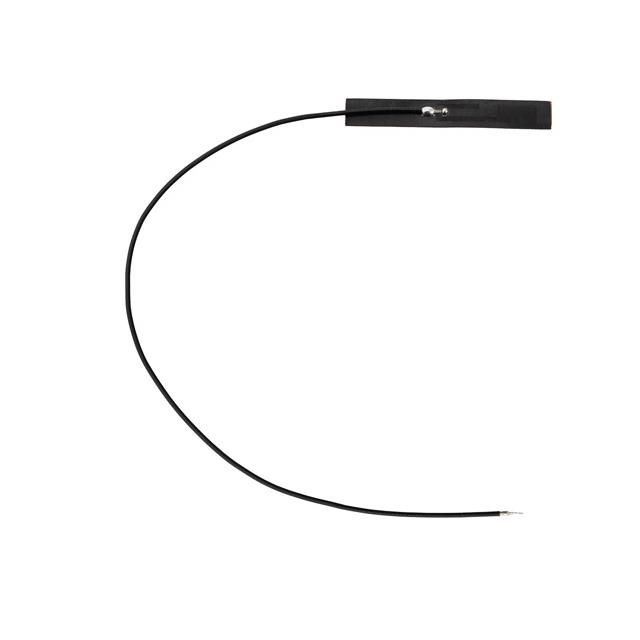

The HG2403FPU-100IPEX is a PCB trace antenna designed for Bluetooth and WLAN applications. It operates within the 2.4 to 2.5 GHz frequency range with a maximum frequency of 2.5 GHz. The component features an omnidirectional radiation pattern and provides a gain of 3 dBi. It has an input impedance of 50 ohms and utilizes an I-PEX connector for mounting. This embedded flex PCB antenna is engineered for integration into devices requiring wireless capability.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for diverse device orientations
• Embedded flex PCB design allows for direct integration into compact electronics
• Optimized for 2.4 GHz Bluetooth and WLAN wireless communication protocols

Antennas RF Applications

• Bluetooth device integration
• WLAN module implementation
• IoT sensor nodes requiring wireless connectivity

Antennas RF Procurement Notes

Verify the specific I-PEX connector mating interface and flex PCB dimensions against your target enclosure design. Confirm that the 50-ohm impedance matches your RF circuit requirements. Ensure the operating temperature range aligns with your application environment. Cross-reference the latest datasheet for any updates on material specifications or compliance certifications before finalizing procurement.

Antennas RF Selection Notes

Select this model when a low-profile, embedded solution is required for 2.4 GHz wireless applications. The 3 dBi gain offers a balance between size and performance for short-range communications. Consider the I-PEX termination for easy assembly onto standard RF modules. Evaluate space constraints as the flex PCB form factor requires specific mounting areas on the main board.

Antennas RF Part Context

This component belongs to L-com's line of embedded RF antennas designed for industrial and consumer electronics. It serves as a compact alternative to external whip or ceramic antennas. The product series focuses on providing reliable wireless connectivity in space-constrained environments where aesthetic integration and minimal profile are critical design factors.

Antennas RF Replacement Considerations

The HG2403PU1-100IPEX is a related variant within the same product family. Verify if the specific gain or connector configuration differences suit your design. No other public substitute part numbers are confirmed for direct replacement.
