HG2403MGU-NM

Antennas RF Overview

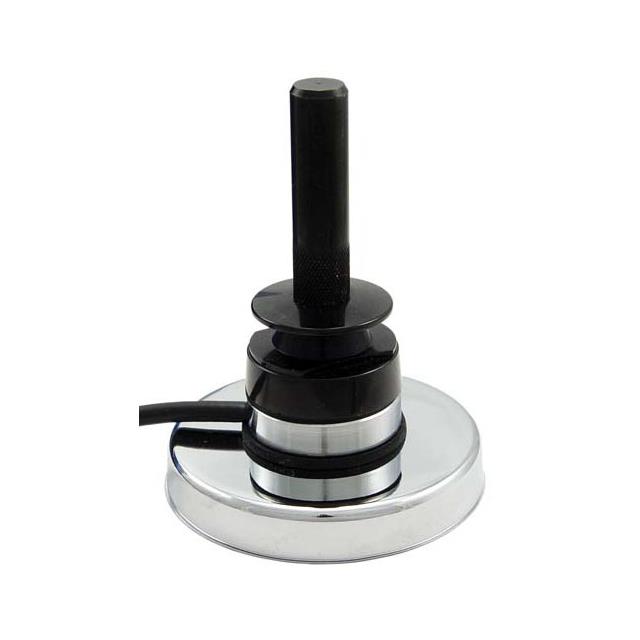

The L-com HG2403MGU-NM is a dual-band omnidirectional mobile antenna designed for operation at 900 MHz and 2.4 GHz frequencies. It provides a gain of 3 dBi and features a magnetic mount for flexible installation. The unit includes a 10-foot (3.0m) cable terminated with an N-type male connector. Maximum power handling is rated at 50 W, with a maximum height of 3.900 inches (99.06mm).

Antennas RF Feature Summary

• Dual-band capability supporting 900 MHz and 2.4 GHz operations.
• Omnidirectional radiation pattern for consistent signal coverage.
• Magnetic mounting base allows for rapid, tool-free attachment to metal surfaces.

Antennas RF Applications

• Multipoint mobile applications in service vehicles.
• Mobile WiFi connectivity systems.
• RF wireless data transmission in moving platforms.

Antennas RF Procurement Notes

Verify the specific connector type required for your system interface before purchase. Confirm that the magnetic mount surface is clean, flat, and ferrous to ensure optimal grounding and signal integrity. Check cable length requirements against the fixed 10-foot specification provided in the datasheet.

Antennas RF Selection Notes

Select this model when an N-type male connection is necessary for the host device. Consider the HG2403MGU-RSP variant if an RP-SMA plug connector is required instead. Ensure the operating environment supports the specified 50 W maximum power rating and dual-band frequency range.

Antennas RF Part Context

This component belongs to L-com's line of mobile antennas designed for vehicular use. It shares the same physical form factor and performance characteristics as the HG2403MGU-RSP, differing primarily in the connector termination type to accommodate various radio interfaces.

Antennas RF Replacement Considerations

The HG2403MGU-RSP serves as a direct functional substitute with identical electrical specifications, differing only in connector type (RP-SMA vs. N-Type Male).
