HG2403MGU-RSP

Antennas RF Overview

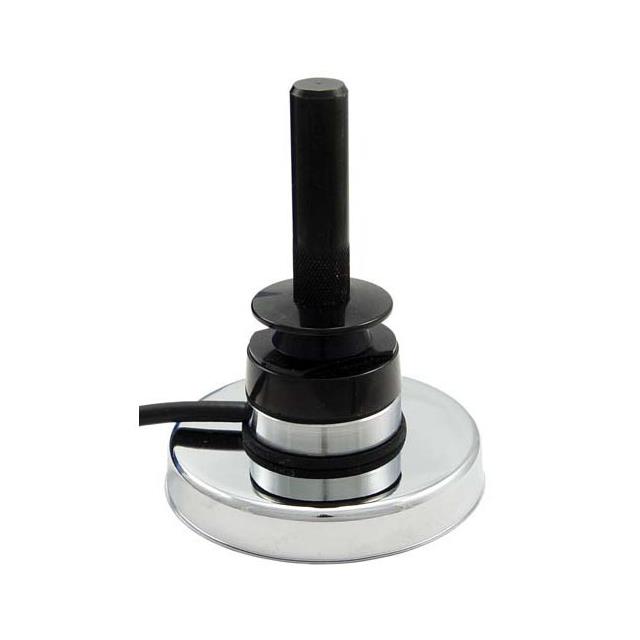

The L-com HG2403MGU-RSP is a dual-band omnidirectional antenna designed for operation in the 900 MHz and 2.4 GHz frequency ranges. It features a fixed gain of 3 dBi across both bands, ensuring consistent signal coverage for connected devices. The unit utilizes an RP-SMA plug connector to interface with compatible radio modules or access points. A magnetic mount base allows for flexible installation on ferrous surfaces without permanent fixtures. This configuration supports reliable wireless communication in various industrial and commercial environments requiring stable RF connectivity.

Antennas RF Feature Summary

• Dual-band capability supporting 900 MHz and 2.4 GHz frequencies
• Omnidirectional radiation pattern for uniform signal distribution
• Magnetic mounting base for temporary or semi-permanent installation
• RP-SMA connector type for standard module integration

Antennas RF Applications

• 900 MHz ISM band applications
• GSM cellular systems
• RFID infrastructure
• 900 MHz wireless LAN networks
• Bluetooth and Wi-Fi module connectivity

Antennas RF Procurement Notes

Verify that the receiving equipment utilizes an RP-SMA female jack, as this component terminates with an RP-SMA male plug. Confirm that the installation surface is ferromagnetic to ensure the magnetic mount functions correctly. Check environmental ratings if outdoor deployment is planned, as specific weatherproofing details require datasheet confirmation. Ensure the operating frequency range of the target device aligns with the 900 MHz and 2.4 GHz specifications to maintain optimal performance.

Antennas RF Selection Notes

Choose this model when dual-band support at 900 MHz and 2.4 GHz is required within a single compact unit. The 3 dBi gain is suitable for short-range indoor or sheltered outdoor deployments where high-gain directional antennas are unnecessary. The magnetic mount offers a non-invasive alternative to screw-down bases for temporary setups. Verify compatibility with existing RP-SMA interfaces before selecting this specific variant over other connector types.

Antennas RF Part Context

L-com specializes in copper and fiber optic cable assemblies, wireless antennas, and modular network accessories. The HG2403MGU-RSP belongs to their portfolio of RF antennas designed to solve interconnection challenges. This product line targets industries requiring robust wireless solutions for data transmission and communication systems.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. When sourcing alternatives, prioritize components matching the RP-SMA connector, dual-band 900/2.4 GHz specification, and magnetic mounting style.
