HG2403MGU-RTP

Antennas RF Overview

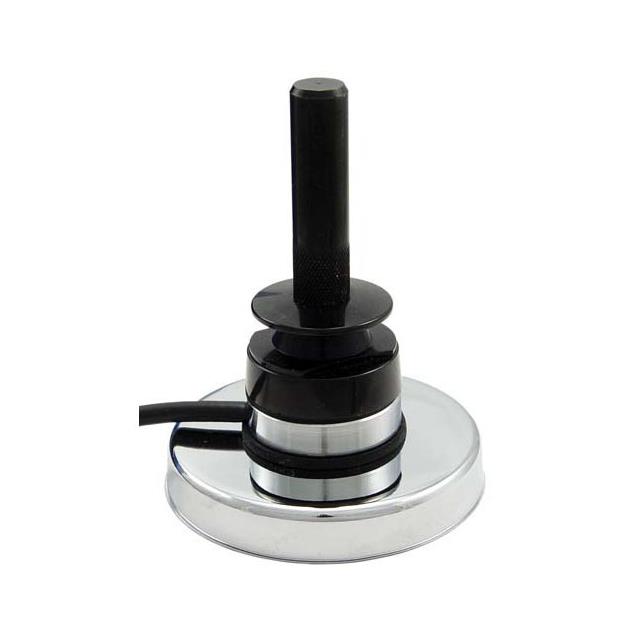

The HG2403MGU-RTP is a dual-band omnidirectional antenna manufactured by L-com, designed for mobile and fixed wireless applications. It operates across two frequency ranges: 900 MHz and 2.4 GHz. The component provides a gain of 3 dBi to ensure effective signal coverage. It features an RP-TNC male connector interface for secure attachment to compatible devices. A magnetic mount base allows for flexible installation on metallic surfaces without permanent fixtures.

Antennas RF Feature Summary

• Dual-band operation supporting both 900 MHz and 2.4 GHz frequencies
• Omnidirectional radiation pattern with 3 dBi gain for uniform coverage
• RP-TNC male connector interface for standard compatibility
• Magnetic mounting base for easy installation on ferrous surfaces

Antennas RF Applications

• Mobile WiFi systems requiring compact dual-band connectivity
• Multipoint wireless communication setups
• Industrial IoT devices utilizing 2.4 GHz or sub-GHz bands
• Portable radio equipment needing reliable magnetic mounting

Antennas RF Procurement Notes

Verify the connector type matches the device port, specifically confirming RP-TNC male polarity rather than standard TNC. Ensure the operating environment supports magnetic adhesion on metal surfaces. Confirm that the dual-band requirement aligns with either 900 MHz or 2.4 GHz usage, as specified in the official L-com datasheet for this part number.

Antennas RF Selection Notes

Select this model when a compact, magnetically mountable dual-band antenna is required for mobile or temporary installations. It is suitable for applications needing 3 dBi gain across 900 MHz and 2.4 GHz bands. Choose this over fixed-mount variants if rapid deployment on metallic surfaces is necessary. Ensure the RP-TNC male interface is compatible with the target transceiver or router.

Antennas RF Part Context

This antenna belongs to L-com's line of mobile and industrial wireless accessories. It is part of a series offering various mounting options and connector types for different wireless standards. The HG2403MGU-RTP specifically addresses needs for dual-band flexibility in constrained spaces where magnetic attachment simplifies setup.

Antennas RF Replacement Considerations

HG2403MGU-RSP is a variant with N-type female connector. HG2403MGU-NF is another variant with N-type female connector. Verify connector polarity and type before substitution to ensure physical and electrical compatibility with existing equipment.
