HG2403MGURB-RSP

Antennas RF Overview

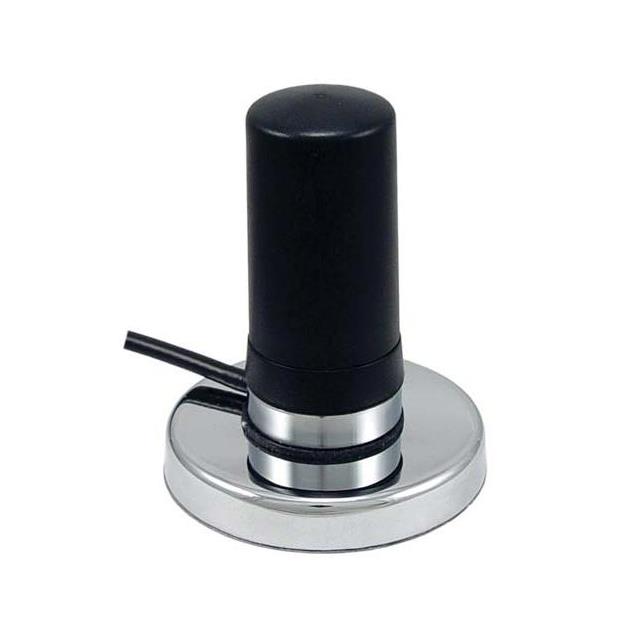

The L-com HG2403MGURB-RSP is a dual-band mobile WiFi antenna designed for 900 MHz and 2.4 GHz frequency ranges. It features a compact omni-directional design with a magnetic mount base, making it suitable for multipoint mobile applications. The unit provides a gain of 3 dBi and utilizes an RP-SMA plug connector. Key electrical specifications include a power rating of 100 W and a VSWR of 1.5:1. The antenna operates within a temperature range of -40 to 185 °F.

Antennas RF Feature Summary

• Dual-band operation supporting 900 MHz and 2.4 GHz frequencies
• Compact omni-directional radiation pattern for versatile coverage
• Magnetic mount base for rapid installation on metallic surfaces
• RP-SMA connector interface for direct equipment attachment

Antennas RF Applications

• Multipoint mobile communications systems
• Mobile WiFi network deployments
• Bluetooth and ISM band data transmission
• WLAN connectivity in vehicular environments

Antennas RF Procurement Notes

Verify the specific part number suffix against official L-com documentation to ensure correct connector type and color variant. Confirm that the RP-SMA plug configuration matches the receiving device port. Check environmental ratings if deployment exceeds standard operating temperatures. Ensure the magnetic mount surface is clean and ferrous for optimal adhesion. Cross-reference datasheet revisions for any updates to mechanical dimensions or electrical tolerances prior to ordering.

Antennas RF Selection Notes

Select this model when a low-profile, magnetically attached solution is required for temporary or semi-permanent mobile installations. The dual-band capability supports both legacy 900 MHz and modern 2.4 GHz protocols. Consider the 3 dBi gain as sufficient for short-range mobile links rather than long-distance point-to-point links. Verify that the RP-SMA interface aligns with existing cabling infrastructure. Evaluate the 100 W power handling if high-power transmitter integration is planned.

Antennas RF Part Context

This component belongs to the MGUR series of mobile antennas from L-com. It is specifically engineered for rugged, portable wireless applications where quick deployment and removal are necessary. The series emphasizes durability and ease of use through its magnetic mounting system. It serves as a specialized accessory for networking solutions requiring reliable RF performance in dynamic environments.

Antennas RF Replacement Considerations

HG2403MGU-RSP

Antennas RF FAQ

What is the connector type for this antenna?

The HG2403MGURB-RSP uses an RP-SMA plug connector.

Is this antenna suitable for outdoor mobile use?

Yes, it features a magnetic mount and operates within a wide temperature range, though direct weather exposure should be evaluated against specific environmental conditions.
