HG2403MGURB-RTP

$80.78

Description：ANTMAGMNT 2.4GHZ 3DBI BLACK
Series：HG
Mfr：L-com
Package：Bag

SKU:11455c354e6b Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2403MGURB-RTP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ 3DBI BLACK. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2403MGURB-RTP

Description：ANTMAGMNT 2.4GHZ 3DBI BLACK
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：3dBi
Features：Cable - 3.05m
Termination：N Type Female, N Type Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：3.000" (76.20mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：100 W

Antennas RF datasheet and documents for HG2403MGURB-RTP

HG2403MGURB-RTP

Antennas RF Overview

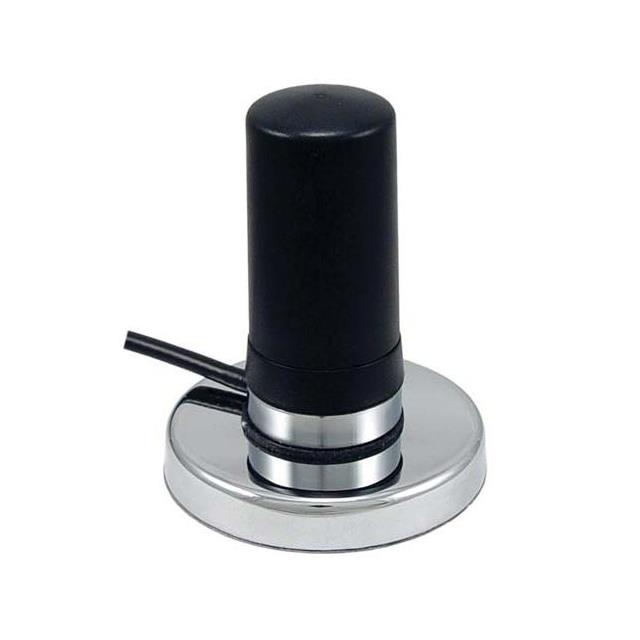

The HG2403MGURB-RTP is a black omnidirectional antenna designed for 2.4 GHz wireless applications, featuring a 3 dBi gain rating. It utilizes an RP-TNC plug connector and includes a magnetic mount for installation. The unit is equipped with a 10-foot (3.0m) connecting cable and a black radome.

Antennas RF Feature Summary

Omnidirectional radiation pattern for broad coverage
Magnetic mounting base for flexible placement
Integrated RP-TNC connector interface
Black radome enclosure

Antennas RF Applications

IEEE 802.11b wireless networks
IEEE 802.11g wireless networks
IEEE 802.11n wireless networks

Antennas RF Procurement Notes

Verify the specific model suffix to confirm connector type and cable length specifications. Ensure compatibility with RP-TNC ports on target devices. Confirm regulatory compliance status such as RoHS requirements prior to procurement.

Antennas RF Selection Notes

Select this component when a low-profile magnetic mount is required for 2.4 GHz deployments. The fixed 10-foot cable length suits stationary installations where flexibility is needed without excessive cabling.

Antennas RF Part Context

This part belongs to L-com's HG series of antennas, which are engineered for reliable wireless connectivity. The series offers various gain options and connector types tailored for different industrial and commercial networking environments.
