HG2403MGURW-RTP

Antennas RF Overview

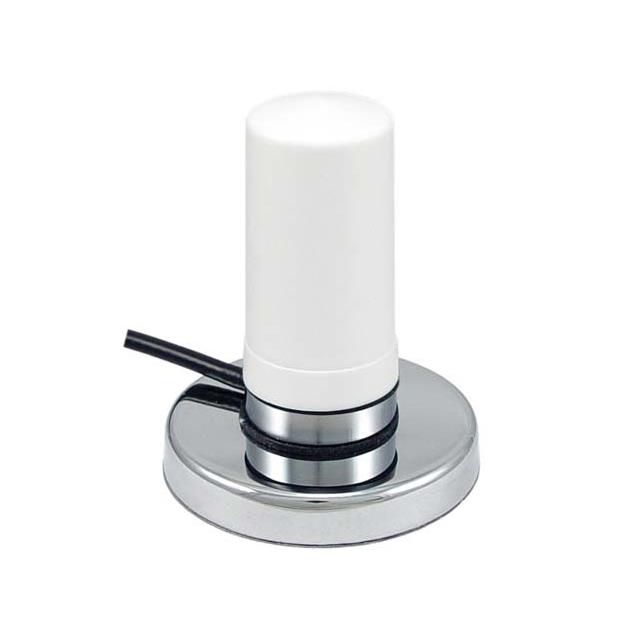

The HG2403MGURW-RTP is a passive RF antenna manufactured by L-com, designed for wireless communication applications. It operates at a frequency of 2.4 GHz with a vertical polarization orientation. The component features a gain of 3 dBi and an impedance of 50 Ohms. It supports protocols including 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN. The antenna has a power rating of 100 W and utilizes a straight whip design. Connectors include N Type Female and N Type Male variants. The housing material is Acrylonitrile Butadiene Styrene.

Antennas RF Feature Summary

• Supports multiple wireless standards including 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN
• Features a straight whip design with magnetic mounting capability
• Constructed from Acrylonitrile Butadiene Styrene housing material

Antennas RF Applications

• Wi-Fi connectivity systems
• Bluetooth device integration
• ISM band operations
• WLAN infrastructure

Antennas RF Procurement Notes

Verify the specific connector configuration required, as sources indicate both N Type Female and N Type Male options are associated with this model designation. Confirm that the unit matches the passive series classification and 2.4 GHz operating frequency. Ensure the housing material specification aligns with environmental requirements. Cross-reference the part number suffix to guarantee compatibility with existing cabling assemblies.

Antennas RF Selection Notes

Select this component when a 2.4 GHz vertical polarization antenna is required for general wireless data transmission. The 3 dBi gain offers standard coverage suitable for typical indoor or outdoor deployments. Consider the magnetic mount feature for flexible installation scenarios. Verify that the 50 Ohm impedance matches the system's transmission line characteristics to ensure optimal signal transfer without reflection losses.

Antennas RF Part Context

This model belongs to L-com's passive antenna series, specifically engineered for 2.4 GHz wireless communications. It serves as a connectivity accessory for data transmission applications. The product is distinct from higher-gain variants like the HG2405MGU-RTP, which offers 5 dBi gain. It is categorized under RF antennas and accessories within the manufacturer's portfolio.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The HG2405MGU-RTP is a related model with different gain specifications but may not be a direct functional replacement due to performance differences.
