HG2403PU1-100IPEX

Antennas RF Overview

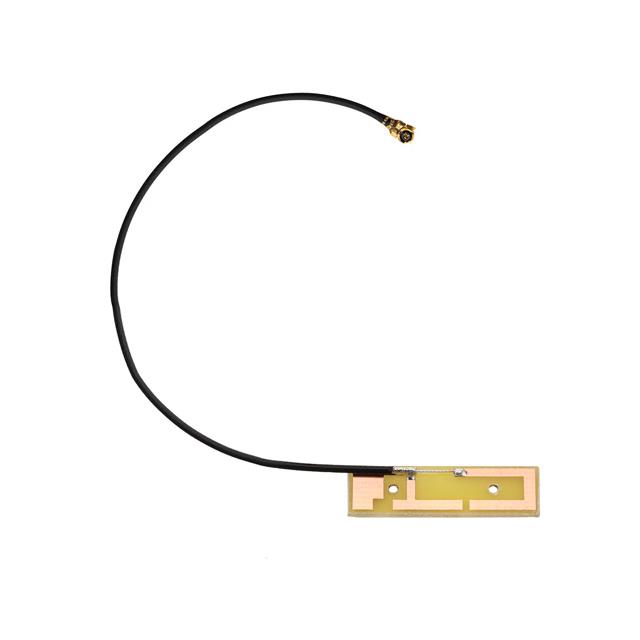

The HG2403PU1-100IPEX is a passive RF antenna designed for Bluetooth and WLAN applications. It operates within the 2.4 GHz to 2.5 GHz frequency range, providing a gain of 3 dBi. The component features an I-PEX connector termination and utilizes a PCB trace design with a connector mount type. Its physical dimensions are 27 mm by 18 mm, and it exhibits a VSWR of 2.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for wireless integration
• PCB trace construction for compact device embedding
• I-PEX connector interface for direct board connection

Antennas RF Applications

• Bluetooth devices
• WLAN modules
• Embedded wireless systems

Antennas RF Procurement Notes

Verify the specific I-PEX connector mating requirements against your PCB layout before ordering. Confirm that the 3 dBi gain and 2.4–2.5 GHz operational range align with your system's regulatory and performance specifications. Ensure the 27x18 mm footprint fits within the designated enclosure constraints.

Antennas RF Selection Notes

Select this model when a low-profile, embedded solution is required for 2.4 GHz wireless protocols. The I-PEX termination simplifies assembly compared to cable-mounted alternatives. Consider the 3 dBi gain sufficient for standard indoor or short-range outdoor connectivity needs where space is limited.

Antennas RF Part Context

This component belongs to L-Com’s passive antenna series, specifically engineered for integration into consumer electronics and industrial IoT devices. It serves as a compact alternative to external whip antennas, offering reliable performance in space-constrained environments requiring Bluetooth or Wi-Fi functionality.

Antennas RF Replacement Considerations

The HG2402FPU-100IPEX is a related variant within the same product line. Verify if the 2.5 dBi gain specification meets your application requirements instead of the 3 dBi provided by this model.
