HG2403PU2-100IPEX

Antennas RF Overview

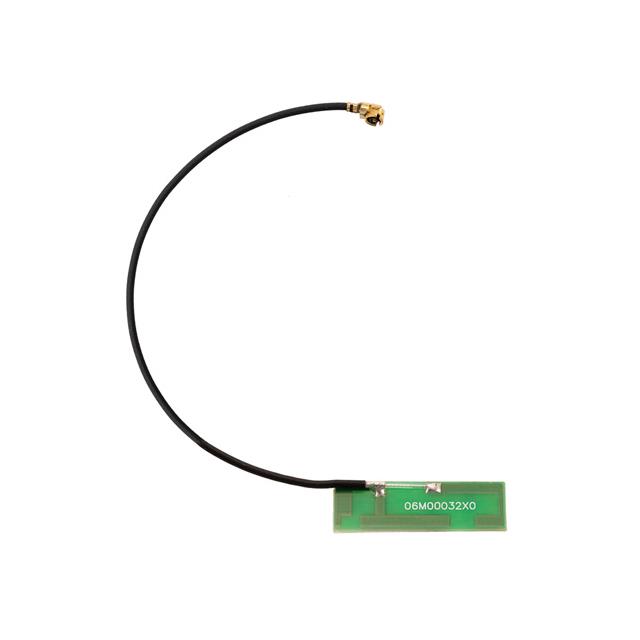

The HG2403PU2-100IPEX is a PCB antenna manufactured by L-com, designed for wireless integration into electronic devices. It operates within the 2.4 GHz to 2.5 GHz frequency range, centered at 2.45 GHz, supporting Bluetooth and WiFi standards. The component features a gain of 3 dBi and an impedance of 50 ohms. It utilizes an I-PEX connector termination and employs adhesive mounting. Physical dimensions are specified as 23 mm by 7.5 mm.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for embedded wireless applications
• Adhesive mounting type for direct PCB integration
• Supports Bluetooth and WiFi communication standards

Antennas RF Applications

• Embedded wireless device connectivity
• Bluetooth module integration
• WiFi network interface implementation

Antennas RF Procurement Notes

Verify the specific suffix designation against official L-com documentation to ensure correct variant selection. Confirm that the adhesive mounting method aligns with assembly requirements. Check for any specific environmental ratings or certifications required for the target application environment before finalizing procurement.

Antennas RF Selection Notes

Select this component when a low-profile, omnidirectional antenna is required for 2.4 GHz wireless protocols. Ensure the host device design accommodates the 23x7.5 mm footprint and I-PEX connector interface. Consider the adhesive mounting constraint versus other mechanical attachment methods during the hardware design phase.

Antennas RF Part Context

This part belongs to L-com's line of RF antennas intended for compact electronic systems. It serves as a critical interface for enabling wireless communication capabilities in space-constrained devices requiring reliable signal transmission and reception in the ISM band.

Antennas RF Replacement Considerations

HG2403PU1-100IPEX is a related variant within the same product family. Verify dimensional compatibility and connector specifications before substitution.
