HG2403RD-1-NM

Antennas RF Overview

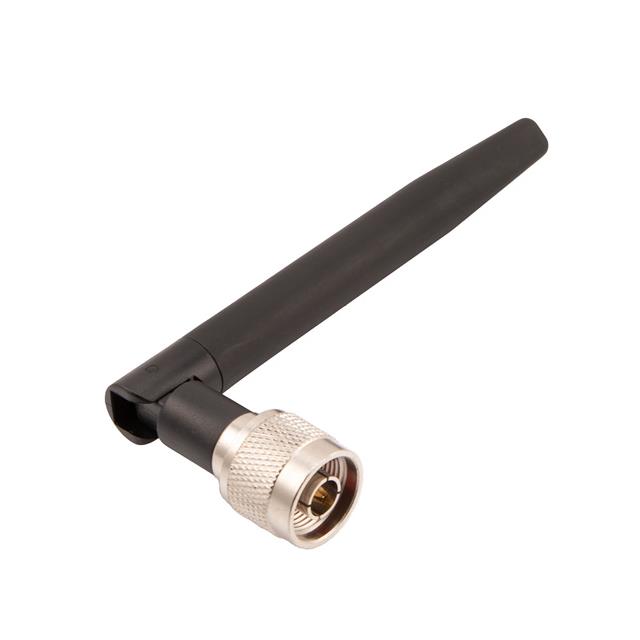

The L-com HG2403RD-1-NM is a flexible omnidirectional rubber duck antenna designed for the 2.4 GHz ISM band. It operates within a frequency range of 2.4 GHz to 2.5 GHz, centered at 2.45 GHz. The component provides a gain of 3 dBi and supports a maximum power input of 30 W. It features an N-Male connector for installation and exhibits a VSWR of 2. The physical height is limited to 5.600 inches (142.24 mm). This antenna complies with RoHS3 standards and is classified under ECCN EAR99.

Antennas RF Feature Summary

• Flexible omnidirectional rubber duck design for broad coverage
• Optimized for 2.4 GHz ISM band applications
• Includes N-Male connector for direct mounting

Antennas RF Applications

• 802.11b/g Wi-Fi systems
• Bluetooth connectivity devices
• WLAN infrastructure
• General ISM band radio equipment

Antennas RF Procurement Notes

Verify that the specific part number matches the required connector type, as the HG2403RD series includes variants with RP-TNC or SMA connectors. Confirm that the N-Male interface aligns with the host device's port specifications before integration. Ensure compliance with local electromagnetic regulations for the intended deployment region.

Antennas RF Selection Notes

Select this model when a flexible, low-profile antenna is required for 2.4 GHz operations. The N-Male connector dictates compatibility with standard N-type ports. Consider the 3 dBi gain level for general coverage needs rather than long-range directional applications. Evaluate physical space constraints against the 142.24 mm maximum height specification.

Antennas RF Part Context

This component belongs to the HG series of RF antennas manufactured by L-com. It serves as a replacement antenna for various wireless communication devices, offering performance comparable to standard stock antennas. The product line includes multiple connector options to suit different hardware interfaces while maintaining consistent electrical characteristics across the family.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers include HG2403RD-NM and HG2403RD-1-NM. These identifiers refer to the same functional unit with minor naming conventions. Verify connector gender and pin configuration to ensure mechanical compatibility with existing equipment ports.
