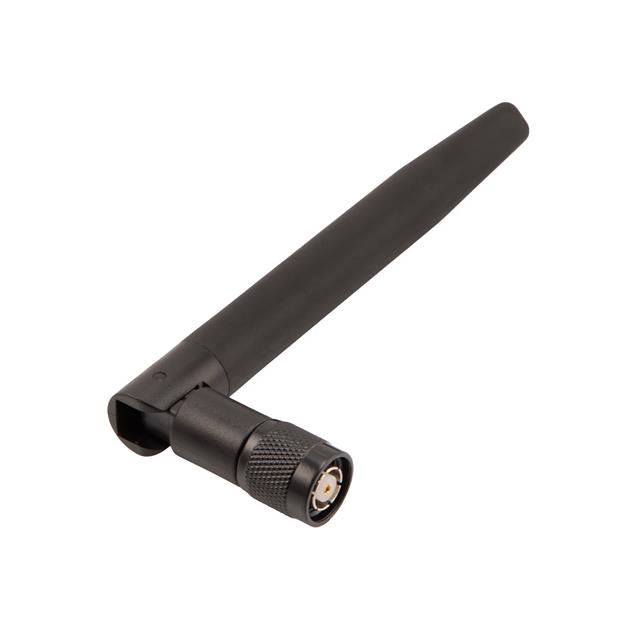

HG2403RD-1-RTF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 3DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2403RD-1-RTF
- Description：ANTRUBBER DUCK 2.4GHZ 3DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Right Angle
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：3dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：RP-TNC Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount, Magnetic
- Height (Max)：5.827" (148.00mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：10 W
Antennas RF datasheet and documents for HG2403RD-1-RTF
Antennas RF Overview
The HG2403RD-1-RTF is a 2.4GHz omnidirectional rubber duck antenna manufactured by L-com, designed for wireless communication applications. It operates within the 2.4GHz to 2.5GHz frequency range with a center frequency of 2.45GHz. The antenna provides a gain of 3dBi and features an RP-TNC connector for installation. It supports protocols including Bluetooth, Wi-Fi, WLAN, and ISM bands. The unit has a maximum power handling capacity of 30W and a VSWR of 2. The physical height is 5.600 inches (142.24mm).
Antennas RF Feature Summary
- Omnidirectional radiation pattern suitable for general wireless coverage.
- Flexible rubber duck design allows for easy positioning and mounting.
- Integrated RP-TNC connector for direct equipment attachment.
Antennas RF Applications
- 802.11b/g Wi-Fi networks
- Bluetooth devices
- ISM band applications
- WLAN systems
Antennas RF Procurement Notes
Verify the specific part number suffix against official L-com documentation to ensure correct connector type and packaging configuration. Confirm RoHS compliance status and lead times through authorized distributors. Cross-reference the DigiKey part number 5073-HG2403RD-RTF-ND for availability details. Ensure the RP-TNC connector matches the receiving device interface requirements before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when a compact, flexible antenna solution is required for 2.4GHz wireless applications. The 3dBi gain offers a balance between size and performance for indoor or short-range outdoor use. The RP-TNC connector is standard for many consumer-grade wireless modules. Consider the 30W power rating for high-power transmitter compatibility. Evaluate the physical dimensions to ensure adequate clearance during installation.
Antennas RF Part Context
This component belongs to the HG series of antennas from L-com, which focuses on RF connectivity solutions. The HG2403RD-1-RTF is specifically engineered for the 2.4GHz ISM band, supporting common wireless standards like Wi-Fi and Bluetooth. It serves as a replacement or upgrade for existing rubber duck antennas requiring RP-TMC interfaces in wireless infrastructure projects.
Antennas RF Replacement Considerations
Direct substitutes may include other L-com models within the HG series featuring similar specifications. Verify connector polarity and impedance matching when considering alternatives from different manufacturers. Ensure any replacement maintains the 2.4GHz frequency range and 3dBi gain characteristics for equivalent performance.
