HG2403RD-1-SM

Antennas RF Overview

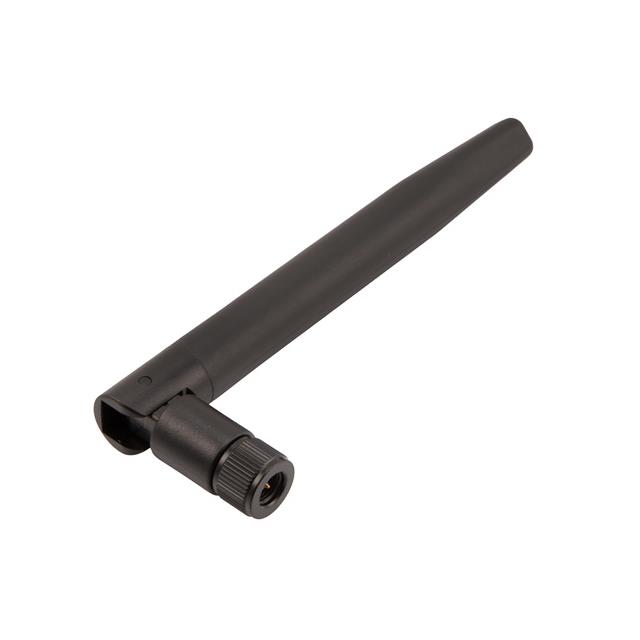

The HG2403RD-1-SM is a flexible rubber duck antenna manufactured by L-com, designed for operation within the 2.4 GHz to 2.5 GHz frequency range. It provides a gain of 3 dBi and features an SMA male connector for installation. The component supports applications including 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN, and IoT systems. It has a maximum power rating of 30 W and a VSWR of 2. The physical height is 5.600 inches (142.24 mm).

Antennas RF Feature Summary

• Flexible rubber duck construction for broad coverage
• SMA male connector interface
• Optimized performance at 2.4 GHz

Antennas RF Applications

• 802.11b/g wireless networks
• Bluetooth communication systems
• ISM band operations
• Wi-Fi and WLAN deployments
• IoT device connectivity

Antennas RF Procurement Notes

Verify that the specific part number matches the required connector type, as the HG2403RD series includes variants with RP-TNC or RP-SMA connectors. Confirm the SMA male configuration aligns with the host equipment interface. Ensure the 30 W power handling capacity meets system requirements. Check RoHS compliance status if environmental regulations apply.

Antennas RF Selection Notes

Select this model when an SMA male connection is required for 2.4 GHz applications. Consider the 3 dBi gain level for standard coverage needs. Evaluate the 5.6-inch height against spatial constraints. Compare against HG2403RD-RTF if an RP-TNC connector is needed instead.

Antennas RF Part Context

This component belongs to the HG series of HyperLink Wireless antennas from L-com. It is part of a family offering various connector options for the same 2.4 GHz rubber duck design. The series targets robust performance in wireless infrastructure and consumer electronics.

Antennas RF Replacement Considerations

HG2403RD-1-RSF serves as a substitute with an RP-SMA connector. HG2403RD-RTF offers an RP-TNC interface. Verify connector gender and threading compatibility before substitution.
