HG2403RD-NM

Antennas RF Overview

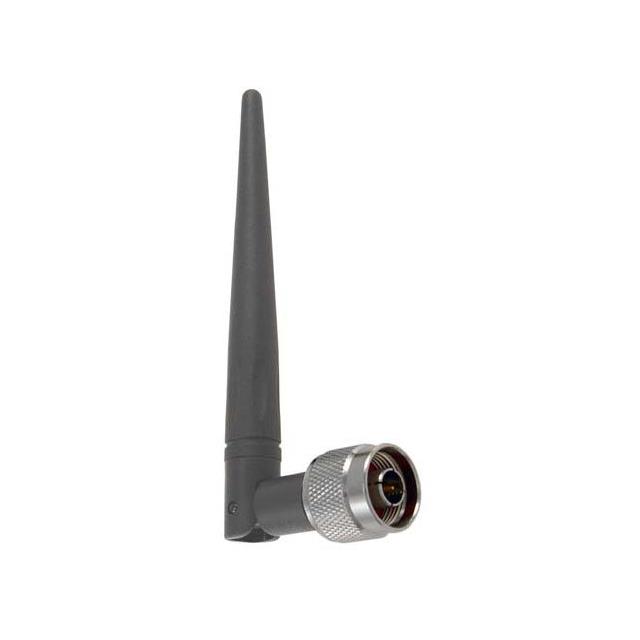

The HG2403RD-NM is a 2.4 GHz omni-directional rubber duck antenna manufactured by L-com. It operates within the 2.4 to 2.5 GHz frequency range, providing a gain of 3 dBi. The component features a 50-ohm input impedance and an N-type male connector. Designed for flexibility, it allows for tilt and swivel adjustments to optimize orientation. The antenna supports WiFi, WLAN, and Bluetooth applications.

Antennas RF Feature Summary

• Omni-directional radiation pattern for broad coverage
• Flexible rubber duck construction with tilt and swivel N-Male connector
• Optimized for 2.4 GHz wireless communication bands

Antennas RF Applications

• WiFi network connectivity
• WLAN system integration
• Bluetooth device interfacing

Antennas RF Procurement Notes

Verify that the specific part number HG2403RD-NM matches the required N-type male connector interface and 2.4 GHz frequency specifications. Confirm compliance with RoHS environmental standards as indicated in official documentation. Ensure the 3 dBi gain and 50-ohm impedance align with the target RF system requirements before finalizing procurement.

Antennas RF Selection Notes

Select this model when a flexible, low-profile antenna solution is required for 2.4 GHz applications. The N-type male connector dictates compatibility with mating ports on host devices. Consider the physical length and flexibility for installation constraints where rigid antennas are unsuitable. The 3 dBi gain offers standard performance comparable to typical stock radio antennas.

Antennas RF Part Context

This component belongs to L-com's HyperLink Wireless antenna series. It is categorized as an RF antenna designed for short-range wireless communications. The product line emphasizes flexible form factors suitable for various mounting orientations in consumer and industrial wireless equipment.

Antennas RF Replacement Considerations

The HG2403RD variant is noted as a replacement antenna yielding similar range to most radio stock antennas. Verify connector type compatibility when substituting other models.
