HG2403RD-RSF

Antennas RF Overview

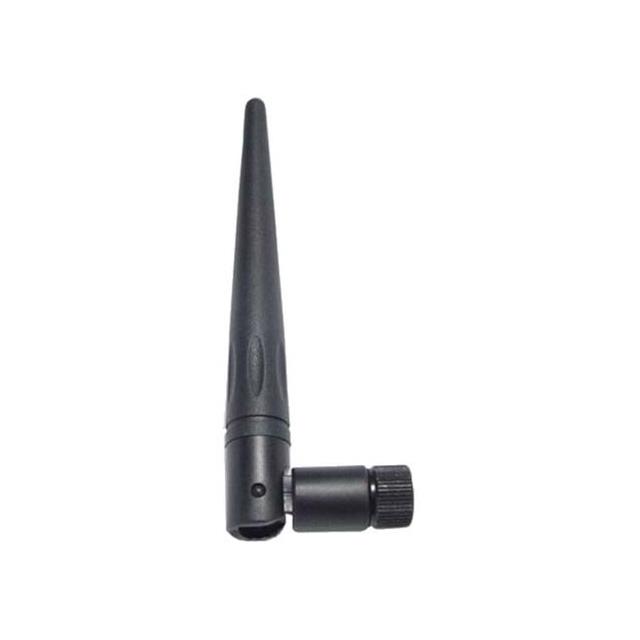

The HG2403RD-RSF is a HyperLink Wireless 2.4 GHz rubber duck antenna manufactured by L-com. It operates within the 2.4 to 2.5 GHz frequency range, providing 3 dBi gain for WiFi, WLAN, Bluetooth, ISM, and IoT applications. The antenna features an RP-SMA connector and a coaxial sleeve design. Technical specifications include a 50 Ohm impedance, a Voltage Standing Wave Ratio (VSWR) of 2, and a power rating of 30 W. The minimum operating temperature is -40 C.

Antennas RF Feature Summary

• Compact omni-directional rubber duck design with broad coverage
• Coaxial sleeve construction for flexible installation
• Supports multiple wireless standards including WiFi and Bluetooth

Antennas RF Applications

• 2.4 GHz ISM band operations
• IEEE 802.11b/g wireless LAN networks
• WiFi network infrastructure
• Multipoint and mobile applications

Antennas RF Procurement Notes

Verify the specific connector type upon ordering, as product listings may reference both RP-SMA and standard SMA variants for similar model numbers. Confirm that the required interface matches the RP-SMA plug specification documented in official datasheets. Ensure compatibility with host devices requiring this specific connector gender and threading before finalizing procurement.

Antennas RF Selection Notes

Select this component when a low-profile, flexible antenna solution is required for 2.4 GHz wireless systems. The 3 dBi gain offers a balance between signal strength and physical size. Consider the -40 C operating temperature limit for environmental suitability. Verify that the RP-SMA interface aligns with existing equipment connectors to ensure proper mating without adapters.

Antennas RF Part Context

This antenna belongs to L-com's HyperLink Wireless series, designed for compact wireless connectivity solutions. It serves as a specialized RF component for integrating wireless capabilities into embedded or industrial systems. The rubber duck form factor distinguishes it from rigid whip antennas, offering easier routing and mounting in confined spaces while maintaining reliable omnidirectional performance.

Antennas RF Replacement Considerations

The HG2403RD-1-RSF is a confirmed substitute part number for this component. Both variants share identical electrical characteristics and mechanical form factors. When replacing, verify that the connector orientation and length requirements remain compatible with the new assembly constraints.
