HG2403RD-RTF

Antennas RF Overview

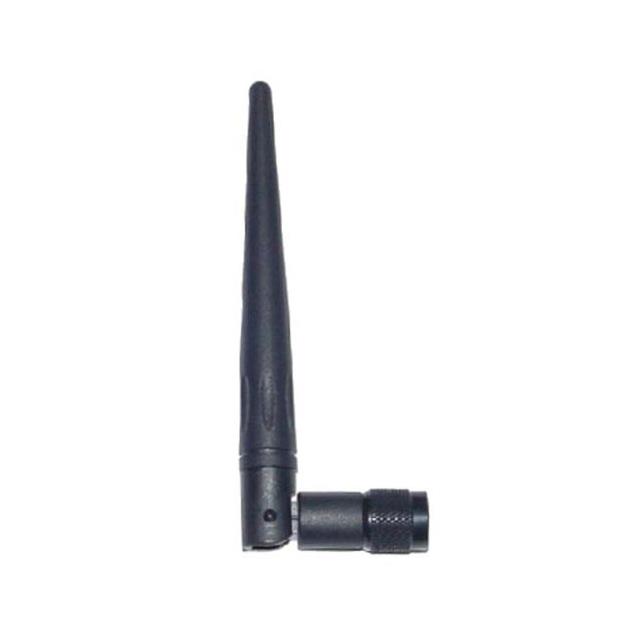

The HG2403RD-RTF is a 2.4 GHz omnidirectional rubber duck antenna manufactured by L-com, designed for the ISM band. It features a 3 dBi gain and operates within a frequency range of 2.4 GHz to 2.5 GHz, with a center frequency of 2.45 GHz. The antenna utilizes an RP-TNC connector for installation and supports applications including 802.11b/g, Bluetooth, Wi-Fi, and WLAN. It has a maximum power rating of 30 W and a VSWR of 2. The physical height is 5.600 inches (142.24 mm). The component is RoHS3 compliant and classified under ECCN EAR99.

Antennas RF Feature Summary

• Omnidirectional radiation pattern providing broad coverage in the 2.4 GHz ISM band
• Compact rubber duck design with coaxial sleeve construction
• Integrated RP-TNC connector for direct equipment attachment

Antennas RF Applications

• 802.11b/g wireless LAN systems
• Bluetooth communication devices
• General ISM band radio applications

Antennas RF Procurement Notes

Verify the specific connector gender and pin configuration against the RP-TNC standard when integrating with host equipment. Confirm that the 30 W maximum power rating aligns with the transmitter output specifications to prevent damage. Ensure the operating frequency range covers the required channel bandwidths for the intended application. Check local import regulations regarding ECCN classification if applicable.

Antennas RF Selection Notes

Select this model for applications requiring a compact, low-profile antenna solution for 2.4 GHz operations. The RP-TNC interface is suitable for devices utilizing this specific connector type rather than standard TNC or SMA. Consider the 3 dBi gain as a baseline performance level for short-range communications. Evaluate the physical dimensions to ensure adequate clearance for the 5.6-inch height in the final assembly.

Antennas RF Part Context

This part belongs to the HG series of antennas from L-com, specifically engineered for wireless connectivity solutions. The HG2403RD-RTF variant distinguishes itself through the RP-TNC termination, differentiating it from models with RP-SMA or magnetic mount options. It represents a standard offering for industrial and commercial wireless deployments requiring reliable omnidirectional coverage.

Antennas RF Replacement Considerations

The HG2403RD-RSF serves as a substitute option featuring an RP-SMA connector and magnetic mounting base. The HG2403RD-SM offers an alternative SMA connector configuration. Verify connector compatibility before substitution, as the RP-TNC interface is not electrically interchangeable with SMA variants without adapters.
