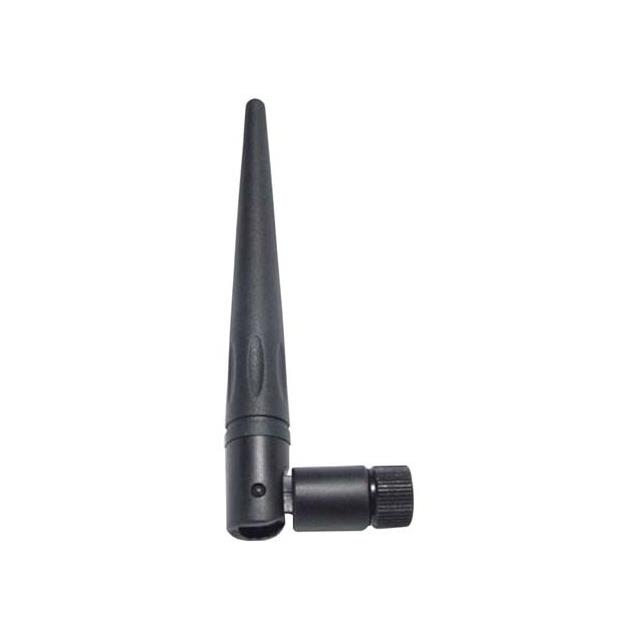

HG2403RD-SM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 3DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2403RD-SM
- Description：ANTRUBBER DUCK 2.4GHZ 3DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：5.400" (137.16mm)
- Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2403RD-SM
Antennas RF Overview
The HG2403RD-SM is a flexible omnidirectional rubber duck antenna designed for the 2.4 GHz ISM band, specifically supporting IEEE 802.11b/g wireless LAN and Bluetooth applications. It features a 3 dBi gain and operates within a frequency range of 2.4 to 2.5 GHz. The component utilizes a 50-ohm impedance system and connects via an SMA male connector. With a compact length of 5.4 inches, it provides broad coverage suitable for WLAN environments.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for broad signal coverage
- Flexible rubber duck design for easy installation
- Optimized performance at 2.4 GHz frequency band
Antennas RF Applications
- IEEE 802.11b/g wireless LAN systems
- Bluetooth device connectivity
- ISM band radio frequency applications
Antennas RF Procurement Notes
Verify the specific connector type matches the host equipment interface requirements before purchase. Confirm that the operating frequency range aligns with the intended application spectrum. Ensure the physical dimensions fit the available mounting space. Check for any environmental rating specifications if outdoor or harsh condition usage is planned.
Antennas RF Selection Notes
Select this model when a flexible, low-profile antenna solution is required for 2.4 GHz devices. The 3 dBi gain offers a balance between size and performance for standard indoor WLAN deployments. Consider the SMA male interface compatibility with existing router or adapter ports. This unit serves as a direct replacement for standard whip antennas in consumer electronics.
Antennas RF Part Context
This component belongs to L-com's line of RF antennas, specifically categorized under flexible whip designs. It is engineered for cost-effective yet high-performance wireless communication tasks. The product targets markets requiring reliable short-range data transmission over Wi-Fi and Bluetooth protocols without complex mounting infrastructure.
Antennas RF Replacement Considerations
The HG2403RD-1-SM is identified as a comparable alternative offering similar 2.4 GHz performance characteristics. Verify connector polarity and mechanical fit when substituting. Ensure the replacement maintains the required 50-ohm impedance to prevent signal reflection issues in the network chain.
