HG2403RDR-MMCX

Antennas RF Overview

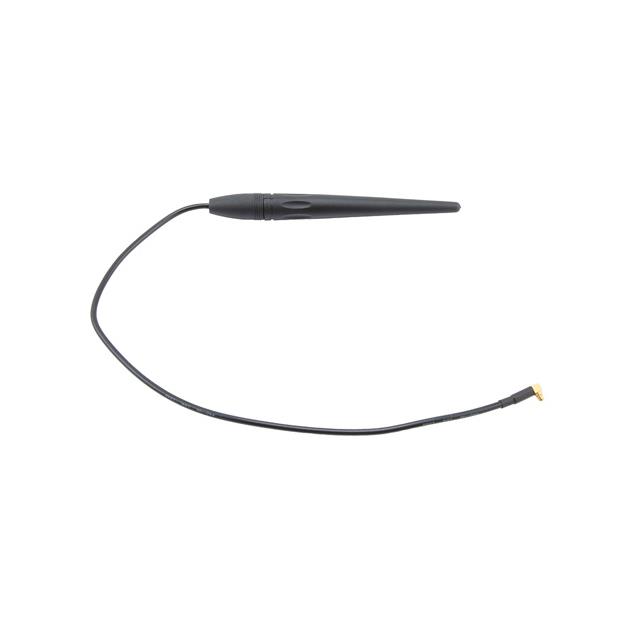

The HG2403RDR-MMCX is a 2.4 GHz rubber duck antenna manufactured by L-com, designed for wireless communication applications. It features a nominal gain of 3 dBi and utilizes an MMCX connector interface for secure attachment. The unit includes a 12-lead cable assembly to facilitate integration into various RF systems. This component operates within the standard 2.4 GHz ISM band, providing reliable signal transmission for devices requiring compact antenna solutions.

Antennas RF Feature Summary

• Compact rubber duck form factor suitable for space-constrained installations
• Integrated 12-lead cable assembly for flexible routing and connection
• MMCX connector interface ensures secure mating with compatible RF ports

Antennas RF Applications

• Wireless local area network (WLAN) equipment
• Industrial IoT sensor nodes
• Bluetooth-enabled peripheral devices

Antennas RF Procurement Notes

Verify that the target system supports the MMCX connector type and operates within the 2.4 GHz frequency range. Confirm that the 12-lead cable length meets the specific installation requirements. Ensure compatibility with the host device's impedance specifications to maintain optimal signal integrity during procurement.

Antennas RF Selection Notes

Select this model when a low-profile antenna is required for 2.4 GHz applications. The MMCX interface is ideal for compact modules where standard connectors are unavailable. Consider the 12-lead cable length as a critical factor for internal routing within enclosures or chassis designs.

Antennas RF Part Context

This antenna belongs to L-com's line of RF components, which include cables, connectors, and antennas for data and signal transmission. The product series focuses on providing reliable interconnect solutions for industrial, commercial, and consumer electronics markets.

Antennas RF Replacement Considerations

Substitute only if the replacement part matches the 2.4 GHz frequency, 3 dBi gain, MMCX connector, and 12-lead cable configuration. Verify mechanical dimensions and impedance compatibility before implementation.
