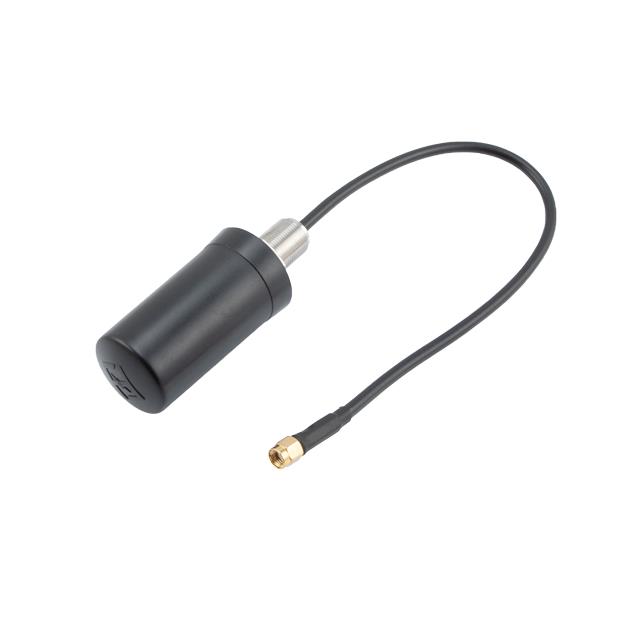

HG2403UR-BAN12RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 3DBI BLK. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2403UR-BAN12RSP
- Description：ANTOMNI 2.4GHZ 3DBI BLK
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3dBi
- Features：Cable - 304.8mm
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.700" (68.58mm)
- Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：100 W
Antennas RF datasheet and documents for HG2403UR-BAN12RSP
Antennas RF Overview
The HG2403UR-BAN12RSP is an RF antenna designed for 2.4 to 2.5 GHz frequency bands, supporting WiFi, WLAN, Bluetooth, and ISM applications. It features a 3 dBi gain and a 50 ohm impedance. The unit utilizes an RP-SMA male connector and includes a 12-inch low-loss antenna lead. The design incorporates a bulkhead mount configuration with a radome enclosure suitable for outdoor environments.
Antennas RF Feature Summary
- Radome enclosed structure ideal for outdoor use
- Bulkhead mounting capability
- Integrated 12-inch low-loss antenna lead
Antennas RF Applications
- WiFi connectivity systems
- WLAN infrastructure
- Bluetooth device integration
- ISM band operations
Antennas RF Procurement Notes
Verify the specific connector type matches the system requirements, as this model specifies an RP-SMA male interface. Confirm that the bulkhead mounting style aligns with the installation surface constraints. Ensure the 12-inch lead length provides adequate reach for the intended deployment location without requiring additional extension cables.
Antennas RF Selection Notes
Select this component when a compact, weather-resistant antenna solution is required for 2.4 GHz wireless protocols. The radome design offers protection against environmental factors while maintaining signal integrity. Consider the fixed lead length and connector polarity during system planning to ensure compatibility with existing RF interfaces.
Antennas RF Part Context
This part belongs to L-com's RF antenna product line, specifically engineered for wireless communication standards operating in the 2.4 GHz range. It serves as a dedicated transmission element for devices requiring reliable short-range wireless data transfer across multiple protocol standards including Wi-Fi and Bluetooth.
Antennas RF Replacement Considerations
The HG2403UR-BAN12RTP is a related variant featuring an RP-TNC plug connector and a black radome. Verify connector compatibility before substitution, as the interface types differ between the SMA and TNC standards.
