HG2403US-NM

$30.81

Description：ANTOMNI SURVEY 2.4GHZ 3DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:11667fe04ce3 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2403US-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI SURVEY 2.4GHZ 3DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2403US-NM

Description：ANTOMNI SURVEY 2.4GHZ 3DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：-
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：-
Return Loss：-
Gain：3dBi
Features：-
Termination：N Type Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.270" (159.26mm)
Applications：802.11b/g/n, ISM, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2403US-NM

HG2403US-NM

Antennas RF Overview

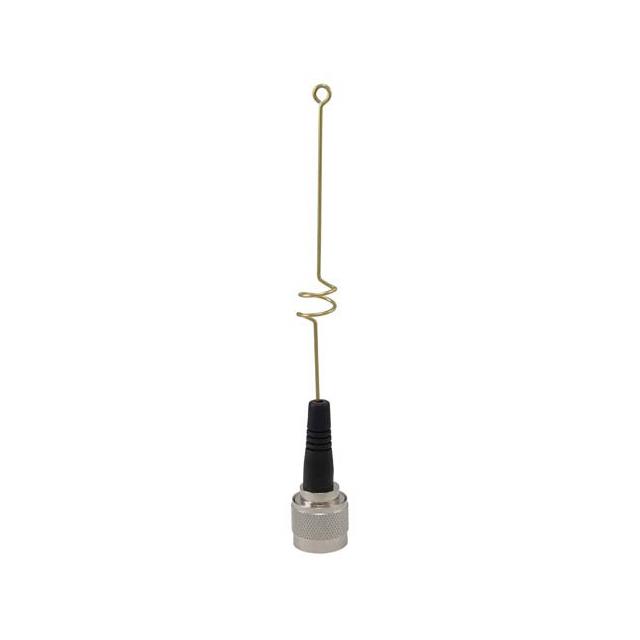

The Hyperlink HG2403US-NM is a compact collinear omnidirectional antenna designed for 2.4 GHz operations. It features a gain of 3 dBi and utilizes an N-type male connector. The unit is engineered for site survey and indoor applications, providing reliable wireless signal transmission in constrained environments.

Antennas RF Feature Summary

Compact collinear design optimized for space-constrained installations
Omnidirectional radiation pattern ensures consistent coverage
Integrated N-type male connector for direct equipment attachment

Antennas RF Applications

Wireless site surveying
Indoor network deployments
Point-to-point communication links

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector gender. Ensure the operating frequency aligns with the 2.4 GHz specification. Confirm that the N-type male interface matches the receiving port requirements before finalizing the order.

Antennas RF Selection Notes

Select this model when a low-profile omnidirectional solution is required for 2.4 GHz systems. It is suitable for scenarios where standard antennas are too large or require external mounting hardware. Consider the N-type connector compatibility with existing RF infrastructure.

Antennas RF Part Context

This component belongs to the Hyperlink series of RF antennas manufactured by L-com. It represents a specialized variant focused on 2.4 GHz band performance, distinct from dual-band or higher-frequency models within the same product family.
