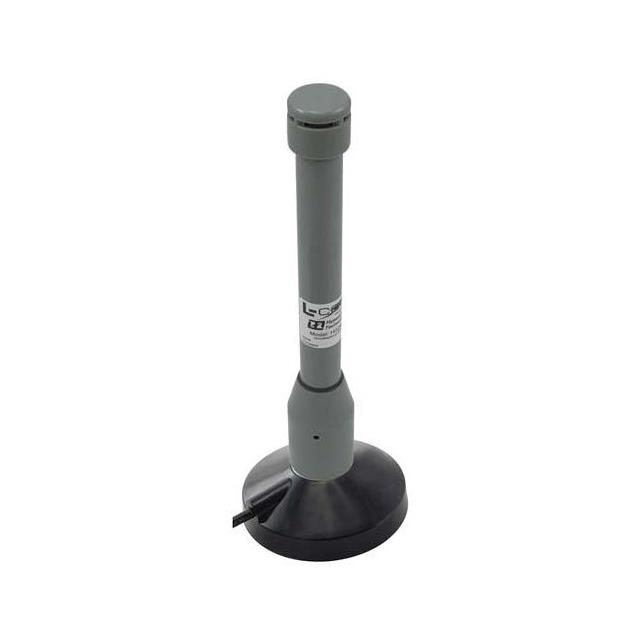

HG2404MGU-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ 4DBI NM 10'. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2404MGU-NM
- Description：ANTMAGMNT 2.4GHZ 4DBI NM 10'
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：4dBi
- Features：Cable - 3.05m
- Termination：N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：7.900" (200.66mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2404MGU-NM
Antennas RF Overview
The L-com HG2404MGU-NM is a passive omnidirectional antenna designed for the 2.4 GHz ISM band. It features a gain of 5.5 dBi and utilizes an N-Male connector. The unit includes a magnetic base for tabletop or mobile mounting and comes with 10 feet of high-performance low-loss cable.
Antennas RF Feature Summary
- Omnidirectional radiation pattern optimized for 2.4 GHz ISM band communication
- Integrated magnetic base enables flexible tabletop or mobile deployment
- Includes 10 feet of high-performance low-loss cabling
Antennas RF Applications
- Wireless LAN infrastructure
- Mobile data communications
- Industrial wireless networking
Antennas RF Procurement Notes
Verify the specific connector gender (N-Male) and cable length (10ft) against system requirements. Confirm that the 5.5 dBi gain specification aligns with link budget calculations. Ensure the magnetic mount type suits the intended installation surface.
Antennas RF Selection Notes
Select this model when a compact, magnetically mounted solution is required for 2.4 GHz applications. The integrated cable simplifies installation compared to separate antenna and jumper combinations. Consider the N-Male interface compatibility with existing network equipment ports.
Antennas RF Part Context
This component belongs to the HyperLink series of passive antennas from L-com. It is part of a family of products designed for reliable wireless connectivity in various environments, ranging from fixed installations to mobile platforms requiring quick setup.
Antennas RF Replacement Considerations
The HG2404MGU-NF serves as a variant with an N-Female connector. Other models like HG2409MGU-NM offer different gain specifications. Verify connector polarity and gain requirements before substituting.
