HG2405MGU-NF

Antennas RF Overview

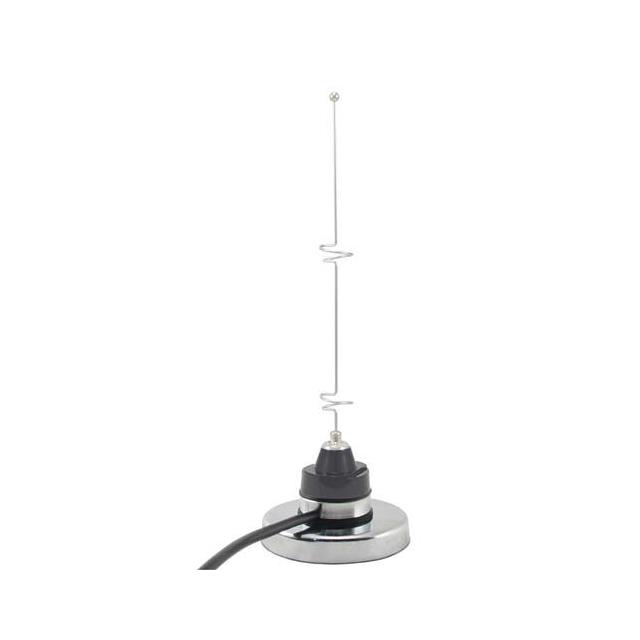

The HG2405MGU-NF is a HyperLink Wireless omnidirectional antenna engineered for the 2.4 GHz ISM band and 2.36 GHz CDMA band. It features a fixed gain of 5 dBi and utilizes a magnetic mount configuration for secure attachment to ferrous surfaces. The unit supports IEEE 802.11b/g wireless LAN standards, Bluetooth, and general WLAN applications. Constructed with weather-proof materials, it ensures reliable operation in outdoor environments while providing consistent 360-degree coverage for multipoint connectivity.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for wide 360-degree coverage
• Integrated magnetic mount for flexible installation on metal surfaces
• Weather-proof construction designed for durable outdoor use

Antennas RF Applications

• IEEE 802.11b and 802.11g wireless LAN deployments
• Bluetooth multipoint connectivity systems
• Public wireless hotspot infrastructure
• ISM band signal transmission and reception

Antennas RF Procurement Notes

Verify the specific connector type required for your system integration, as datasheets may list variations or require separate cable assemblies. Confirm that the magnetic base provides sufficient holding force for the intended mounting surface orientation. Ensure the operating frequency range aligns precisely with your network equipment specifications to maintain optimal signal integrity.

Antennas RF Selection Notes

Select this model when a non-invasive, temporary, or easily repositionable antenna solution is required. The magnetic mount distinguishes it from permanently mounted alternatives. Consider the 5 dBi gain level relative to other HyperLink series options if higher directivity or broader bandwidth is necessary for specific long-range applications.

Antennas RF Part Context

This component belongs to L-com's HyperLink Wireless product line, which specializes in RF antennas for industrial and commercial communication networks. The HG2405MGU-NF represents the standard omnidirectional variant within the 2.4 GHz family, offering a balance between coverage area and signal strength for general-purpose wireless networking tasks.

Antennas RF Replacement Considerations

The HG2405MGU-SM serves as a related alternative within the same product family, featuring an SMA connector instead of the N-type interface typically associated with this series. Verify connector compatibility before substitution. Other models like the HG2409MGU offer different gain characteristics but share similar mounting and environmental ratings.
