HG2405MGU-NM

Antennas RF Overview

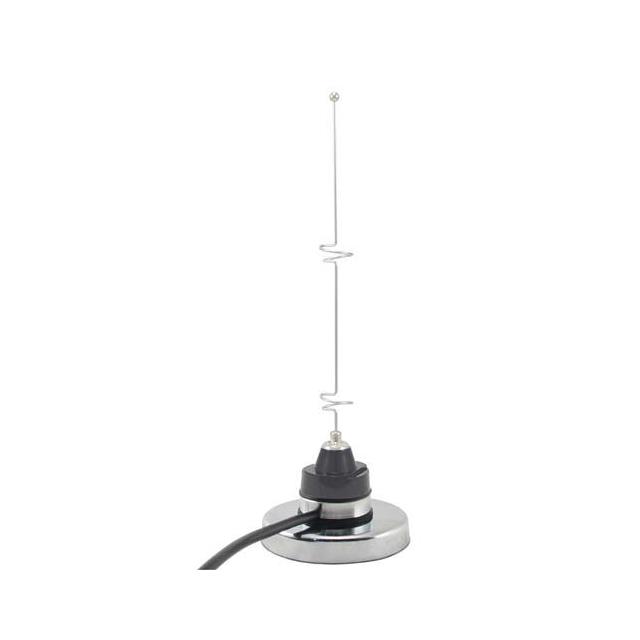

The HG2405MGU-NM is a 2.4 GHz omnidirectional antenna with 5 dBi gain, designed for IEEE 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN applications. It features a straight N-type female connector and includes an N-type male magnetic base. The assembly incorporates 10 feet (3.0m) of high-performance low-loss 195-Series cable. This configuration supports reliable wireless connectivity in various environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• Integrated magnetic base for flexible mounting options
• Pre-terminated with 10 feet of low-loss cable

Antennas RF Applications

• IEEE 802.11b/g wireless LANs
• Bluetooth multipoint connections
• Public wireless hotspots

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against project specifications before ordering. Confirm that the N-type female interface matches existing equipment ports. Ensure the magnetic base mount is suitable for the intended installation surface to guarantee secure attachment and optimal signal transmission performance.

Antennas RF Selection Notes

Select this model when a fixed 10-foot cable length and magnetic mounting are required. The N-type female connector dictates compatibility with corresponding male interfaces. Consider the 5 dBi gain level relative to range needs compared to higher gain alternatives like the HG2409MGU-NM if extended reach is necessary.

Antennas RF Part Context

This component belongs to L-Com's HG2405 series of 2.4 GHz antennas. It shares core electrical characteristics with variants such as the HG2405MGU-SM, differing primarily in connector type. The product line targets general-purpose wireless networking and short-range data communication applications requiring stable omnidirectional coverage.

Antennas RF Replacement Considerations

The HG2405MGU-SM serves as a direct functional substitute offering identical gain and frequency response but utilizes an SMA connector instead of N-type. Verify connector compatibility on the host device before swapping between these models to ensure physical connection feasibility.
