HG2405MGU-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT OMNI 2.4GHZ 5DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2405MGU-RSP
- Description：ANTMAGMNT OMNI 2.4GHZ 5DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5dBi
- Features：Cable - 3.05m
- Termination：N Type Female, N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：10.000" (254.00mm)
- Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：100 W
Antennas RF datasheet and documents for HG2405MGU-RSP
Antennas RF Overview

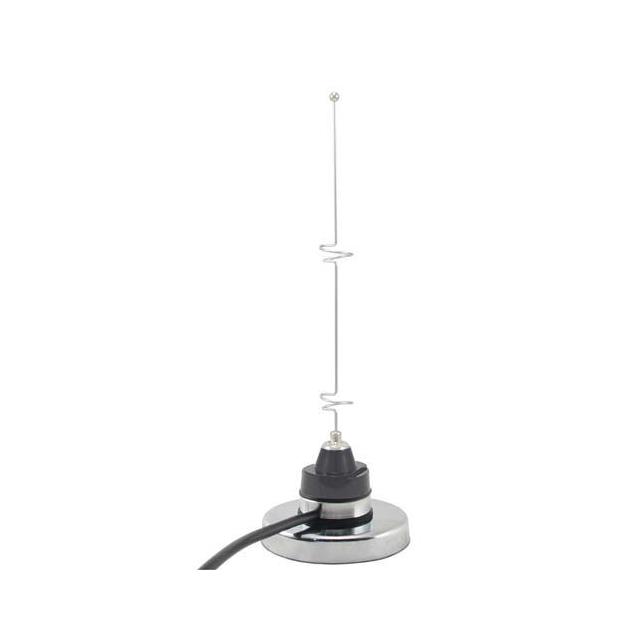

The L-com HG2405MGU-RSP is a 2.4 GHz omnidirectional mobile WiFi antenna designed for ISM band applications. It features a gain of 5 dBi and includes a 10-foot (3.0m) cable with an RP-SMA connector. The unit utilizes a magnetic mounting base for flexible installation on vehicles or metal surfaces.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for consistent signal coverage
- Magnetic mounting base for secure attachment to ferrous surfaces
- Integrated RP-SMA connector for direct device interfacing
Antennas RF Applications
- Multipoint mobile WiFi applications
- Vehicle-mounted wireless communication systems
- ISM band data transmission setups
Antennas RF Procurement Notes
Verify the specific connector type required for your system, as this model uses an RP-SMA interface. Confirm that the 10-foot cable length meets your deployment distance requirements. Ensure the magnetic mount surface is clean and ferromagnetic for optimal adhesion. Check local regulations regarding antenna gain and transmission power limits for the 2.4 GHz band before installation.
Antennas RF Selection Notes
Select this model when a compact, high-performance mobile antenna is needed for the 2.4 GHz spectrum. It is suitable for environments requiring rapid deployment and removal due to its magnetic base. Consider the RP-SMA connector compatibility with existing equipment. This antenna is ideal for balancing portability with reliable signal strength in mobile scenarios.
Antennas RF Part Context
This component belongs to L-com's HG2405 series of networking accessories. The series focuses on providing economical yet high-performance solutions for wireless connectivity. The HG2405MGU-RSP variant specifically addresses mobile use cases through its integrated magnetic mount and extended cabling, distinguishing it from fixed-mount or shorter-cable alternatives within the same frequency range.
Antennas RF Replacement Considerations
The HG2405MGU-RTP is a related variant featuring a different connector configuration. Verify connector polarity and type compatibility when substituting. Ensure any replacement maintains the 5 dBi gain and 2.4 GHz operational frequency to preserve system performance.
