HG2405MGU-SM

Antennas RF Overview

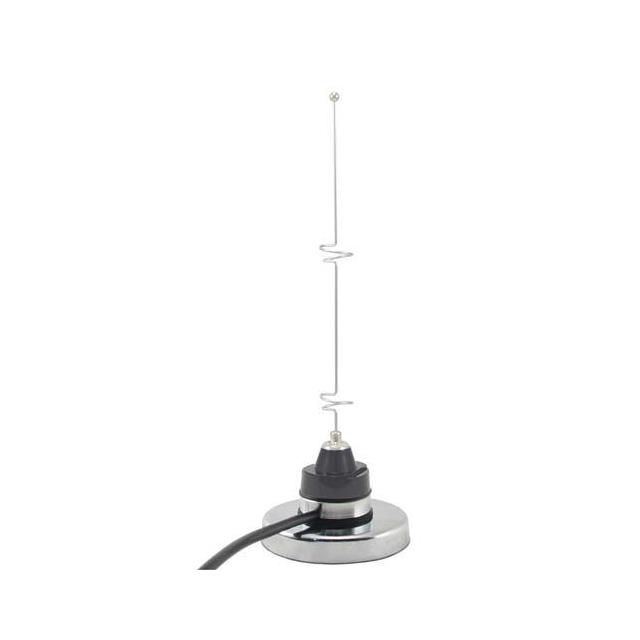

The L-Com HG2405MGU-SM is a passive omnidirectional antenna designed for the 2.4 GHz ISM band, supporting 802.11b/g, Bluetooth, Wi-Fi, and WLAN applications. It features a gain of 5 dBi and utilizes an SMA connector interface. The unit includes a magnetic mount base for secure attachment to ferrous surfaces. This component is engineered for robust wireless connectivity performance in mobile or outdoor environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent signal coverage
• Integrated magnetic mount base for flexible installation
• Engineered for high-performance wireless connectivity

Antennas RF Applications

• 802.11b/g Wi-Fi networks
• Bluetooth device connectivity
• ISM band wireless communications
• WLAN infrastructure deployment

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against project requirements before ordering. Confirm that the SMA interface matches existing cable assemblies. Ensure the magnetic mount base is suitable for the intended installation surface. Cross-reference the datasheet for environmental ratings if outdoor usage is planned. Validate compatibility with local regulatory frequency bands.

Antennas RF Selection Notes

Choose this model when a compact omnidirectional solution with integrated mounting is required. The 5 dBi gain offers a balance between range and size for mobile applications. Consider the SMA interface compatibility with host equipment. Evaluate the magnetic mount suitability versus other mounting options like pole or wall brackets. Ensure the 2.4 GHz frequency range aligns with the target wireless standard.

Antennas RF Part Context

This part belongs to the HyperLink Wireless series by L-Com, focusing on reliable RF connectivity solutions. It is distinct from variants such as the HG2405MGU-NF which uses N-type connectors, and the HG2405MGU-RSP which may differ in packaging or specific accessory inclusion. The SM suffix specifically denotes the SMA connector interface.

Antennas RF Replacement Considerations

Direct substitutes include models with identical electrical specifications but different connectors, such as HG2405MGU-NF for N-type interfaces. Verify that any replacement maintains the 5 dBi gain and 2.4 GHz operational bandwidth. Ensure the physical form factor and mounting method are compatible with the existing installation constraints.
