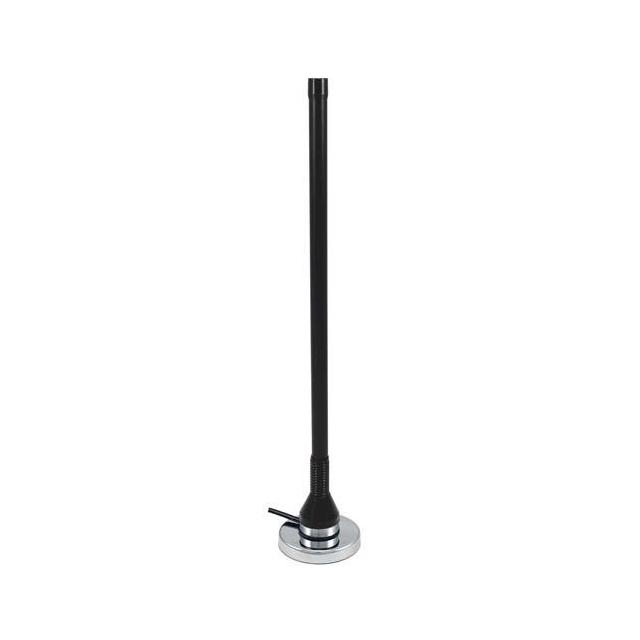

HG2405MGUR-NM

$154.50

Description：ANTMAGMNT 2.4GHZ 5DBI NM CON
Series：HG
Mfr：L-com
Package：Bag

SKU:cf94c6282f7b Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2405MGUR-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ 5DBI NM CON. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2405MGUR-NM

Description：ANTMAGMNT 2.4GHZ 5DBI NM CON
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：-
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：-
Return Loss：-
Gain：5dBi
Features：Cable - 3.05m
Termination：N Type Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：14.500" (368.30mm)
Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2405MGUR-NM

HG2405MGUR-NM

Antennas RF Overview

The L-com HG2405MGUR-NM is a 2.4 GHz whip antenna designed for RF applications. It features a straight configuration with an N-type male connector and includes a magnetic mount for flexible installation. The unit provides a gain of 5 dBi, supporting IEEE 802.11b/g standards, Bluetooth, ISM bands, Wi-Fi, and WLAN protocols. Maximum height is 368.30 mm.

Antennas RF Feature Summary

Whip-style design with integrated magnetic base
N-type male connector interface
Supports 2.4 GHz frequency range

Antennas RF Applications

IEEE 802.11b/g wireless LANs
Bluetooth multipoint connections
ISM band operations
Wi-Fi and WLAN deployments

Antennas RF Procurement Notes

Verify the specific part number suffix to ensure correct connector type and mounting style. Confirm that the N-type male interface matches system requirements. Check datasheet specifications for environmental ratings and gain consistency before procurement.

Antennas RF Selection Notes

Select this model for applications requiring a compact 2.4 GHz solution with magnetic mounting flexibility. Ensure the N-type male connector aligns with existing cable assemblies. Consider the physical dimensions and gain characteristics relative to other L-com antennas in the series.

Antennas RF Part Context

This component belongs to the L-com HG2405 series of RF antennas. It shares design similarities with models like the HG2405UR-NMO but differs in connector type and mounting method. The series targets mobile and fixed wireless infrastructure needs.
