HG2405MGUR-RSP

$179.50

Description：ANTMAGMNT 2.4GHZ 5DBI RSP CON
Series：HG
Mfr：L-com
Package：Bag

SKU:2f9a125f8bf7 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2405MGUR-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ 5DBI RSP CON. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2405MGUR-RSP

Description：ANTMAGMNT 2.4GHZ 5DBI RSP CON
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：-
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：-
Return Loss：-
Gain：5dBi
Features：Cable - 3.05m
Termination：RP-SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：14.500" (368.30mm)
Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2405MGUR-RSP

HG2405MGUR-RSP

Antennas RF Overview

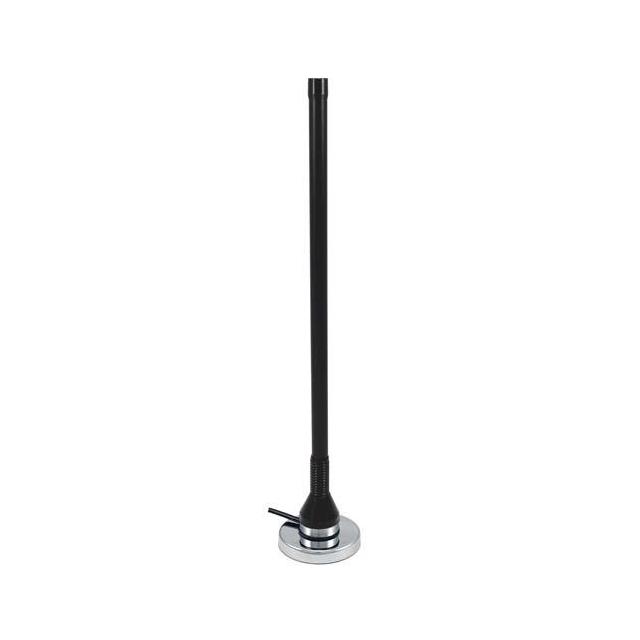

The HG2405MGUR-RSP is a magnetic mount whip antenna designed for 2.4 GHz operations, supporting 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN standards. It features an N-type male connector with an RP-SMA pigtail cable for flexible integration. The unit provides 5 dBi gain and includes a straight whip element mounted on a magnetic base for secure attachment to ferrous surfaces.

Antennas RF Feature Summary

Magnetic mounting base for rapid installation on metal surfaces
Integrated RP-SMA pigtail cable for connector flexibility
Straight whip design optimized for 2.4 GHz frequency bands

Antennas RF Applications

Wi-Fi network expansion in mobile or temporary setups
Bluetooth device connectivity enhancement
ISM band industrial sensor communication
WLAN signal coverage improvement

Antennas RF Procurement Notes

Verify the specific connector configuration required for your system, as this model includes an RP-SMA pigtail rather than a direct N-type interface. Confirm that the operating environment supports magnetic mounting on ferrous materials. Ensure the 5 dBi gain meets the link budget requirements for the intended application range without requiring additional amplification.

Antennas RF Selection Notes

Select this model when a non-permanent, easily repositionable antenna solution is needed for 2.4 GHz applications. The magnetic base allows for quick deployment without drilling or adhesive. The included pigtail simplifies routing to internal equipment ports. Consider alternative models if fixed panel mounting or higher gain is required for long-range links.

Antennas RF Part Context

This component belongs to L-com's HG2405 series of RF antennas, which are engineered for reliable wireless communication across various industrial and commercial protocols. The series offers multiple connector options and mounting styles to accommodate diverse integration needs within the 2.4 GHz spectrum.
