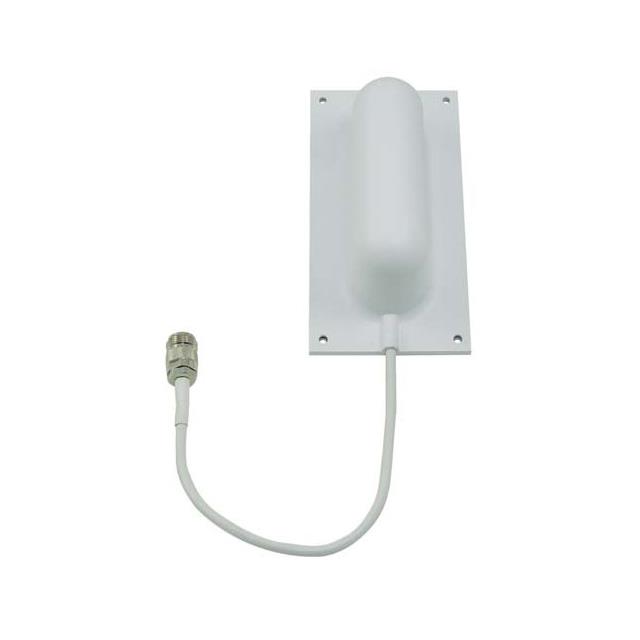

HG2405P-135-NF

$61.96

Description：ANT PANEL 2.4 GHZ 5 DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:b08f179fbfcb Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2405P-135-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT PANEL 2.4 GHZ 5 DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2405P-135-NF

Description：ANT PANEL 2.4 GHZ 5 DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Cellular, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：1
VSWR：-
Return Loss：-
Gain：5dBi
Features：Cable - 304.8mm
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Wall Mount
Height (Max)：2.210" (56.13mm)
Applications：802.11b/g, DCS, ISM, PCS, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for HG2405P-135-NF

HG2405P-135-NF

Antennas RF Overview

The HG2405P-135-NF is a panel antenna designed for the 2.4 GHz frequency band, offering a gain of 5 dBi. It features an N-female connector interface and supports horizontal or vertical polarization installation. The unit measures approximately 12 inches in size, providing a wide-angle radiation pattern suitable for indoor applications.

Antennas RF Feature Summary

Wide-angle patch design for broad coverage
Supports flexible horizontal or vertical mounting
Versatile adaptive package for various setups

Antennas RF Applications

Indoor wireless networking systems
WLAN infrastructure deployment
General purpose radio communication

Antennas RF Procurement Notes

Verify the specific suffix 'NF' indicates the N-female connector configuration as documented. Confirm the 2.4 GHz operational range matches system requirements. Ensure the 5 dBi gain specification aligns with link budget calculations. Check physical dimensions against available mounting space constraints.

Antennas RF Selection Notes

Select this model when a dedicated 2.4 GHz panel solution is required. The wide-angle characteristic suits environments needing broad spatial coverage rather than long-range directional focus. Consider the N-female interface compatibility with existing cabling infrastructure before finalizing the choice.

Antennas RF Part Context

This component belongs to the HyperLink Wireless series by L-com. It represents a specialized flat panel MIMO antenna variant focused on the 2.4 GHz spectrum. The product line emphasizes versatile indoor deployment options with standardized connector interfaces.
