HG2405P-135-NM

Antennas RF Overview

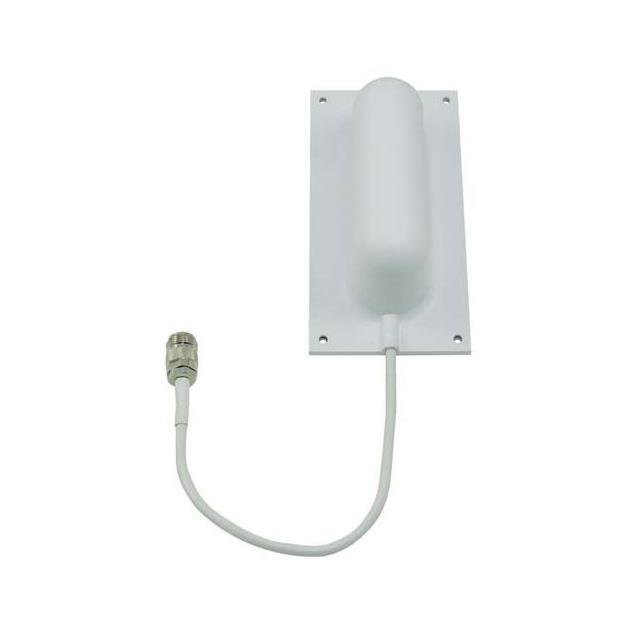

The L-com HG2405P-135-NM is a 2.4 GHz panel antenna with 5 dBi gain, designed for indoor wide-angle coverage. It features an N-type female connector and includes a 4-foot cable. The unit supports horizontal or vertical polarization installation.

Antennas RF Feature Summary

• Wide-angle radiation pattern for broad indoor coverage
• Panel design suitable for wall or ceiling mounting
• Supports flexible polarization orientation

Antennas RF Applications

• Indoor wireless LAN deployments
• WLAN signal distribution in commercial spaces
• ISM band communication systems

Antennas RF Procurement Notes

Verify the specific connector type matches system requirements. Confirm that the operating frequency aligns with network standards. Ensure physical dimensions fit the intended mounting location. Check cable length sufficiency for the installation path.

Antennas RF Selection Notes

Choose this model for applications requiring omnidirectional-like coverage within a plane. Consider the N-type interface compatibility with existing radio equipment. Evaluate the 5 dBi gain against range requirements. Assess the 4-foot cable length for routing flexibility.

Antennas RF Part Context

This component belongs to the HG2405P series of 2.4 GHz antennas from L-com. Variants in this series differ primarily by connector type and cable length. The NM suffix indicates the specific N-type male connector configuration on the cable end.

Antennas RF Replacement Considerations

HG2405P-135-NF serves as a functional alternative with an N-type female connector. HG2405P-135-RSP offers a different connector interface. Verify connector gender compatibility before substitution.
