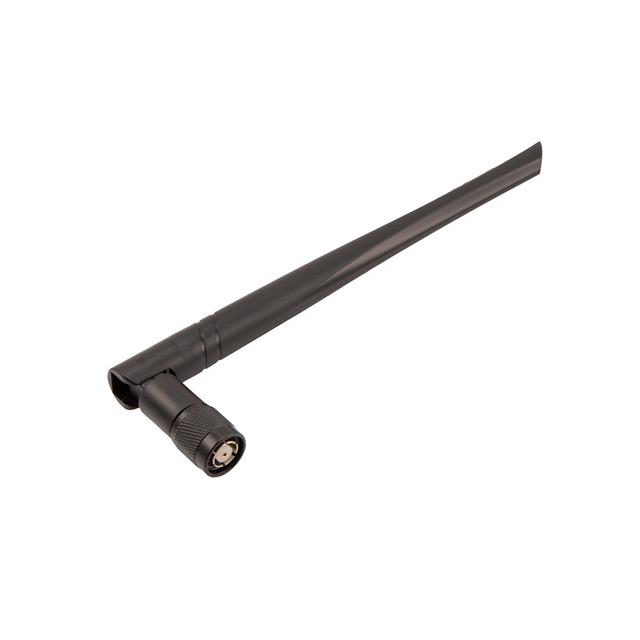

HG2405RD-1-RTP

$20.75

Description：ANTRUBBER DUCK 2.4GHZ 5DBI
Series：HG
Mfr：L-com
Package：Bag

SKU:fe796a40c5b6 Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2405RD-1-RTP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 5DBI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2405RD-1-RTP

Description：ANTRUBBER DUCK 2.4GHZ 5DBI
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Right Angle
Number of Bands：1
VSWR：2
Return Loss：-
Gain：4.52dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：RP-TNC
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：7.953" (202.00mm)
Applications：802.11a/b/g/n/x, Bluetooth, ISM, Wi-Fi, WLAN
Power - Max：10 W

Antennas RF datasheet and documents for HG2405RD-1-RTP

HG2405RD-1-RTP

Antennas RF Overview

The HG2405RD-1-RTP is an omnidirectional rubber duck antenna designed for the 2.4 GHz ISM band, operating within a frequency range of 2400 MHz to 2500 MHz. It provides a gain of 4.5 dBi and features an RP-TNC connector for mounting. The antenna is engineered for applications including Wi-Fi, WLAN, Bluetooth, and general ISM usage, offering flexible coverage in compact installations.

Antennas RF Feature Summary

Omnidirectional radiation pattern for broad signal coverage
Flexible rubber duck design for easy installation
Integrated RP-TNC connector interface

Antennas RF Applications

Wi-Fi networks
WLAN systems
Bluetooth devices
ISM band operations

Antennas RF Procurement Notes

Verify the specific part number suffix when ordering, as L-com utilizes distinct codes for different connector types and gain variations. Confirm that the required interface matches the RP-TNC specification rather than standard TNC or SMA variants. Cross-reference the datasheet to ensure the 4.5 dBi gain aligns with system requirements before finalizing procurement.

Antennas RF Selection Notes

Select this model when a flexible, low-profile antenna is required for 2.4 GHz wireless applications. The RP-TNC connector necessitates compatible cabling or adapter solutions. Consider the physical flexibility of the rubber element for routing in constrained spaces compared to rigid whip antennas.

Antennas RF Part Context

This component belongs to L-com's HG series of RF antennas, which are characterized by their durable rubber construction and suitability for indoor and outdoor wireless deployments. The series includes various gain options and connector configurations tailored for different wireless standards.
