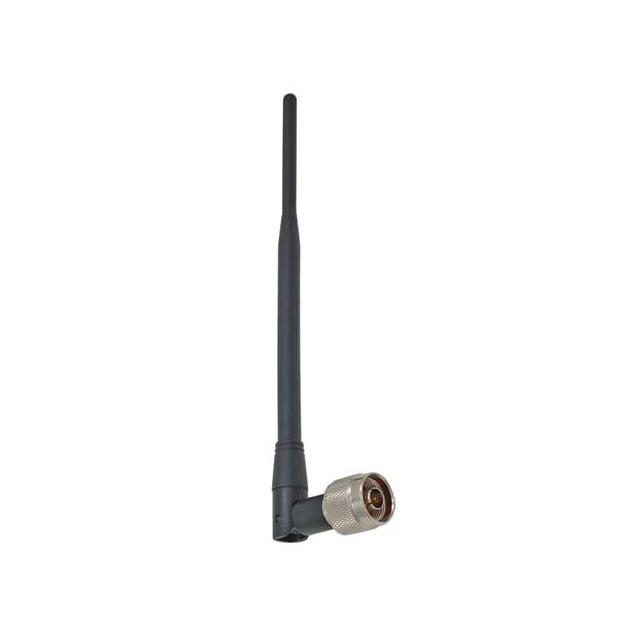

HG2405RD-NM is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTRUBBER DUCK 2.4GHZ 5DB. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2405RD-NM
- Description：ANTRUBBER DUCK 2.4GHZ 5DB
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：5.5dBi
- Features：-
- Termination：N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：8.300" (210.82mm)
- Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2405RD-NM
Antennas RF Overview
The L-com HG2405RD-NM is a HyperLink Wireless 2.4 GHz omni-directional rubber duck antenna designed for RF applications. It operates within the frequency range of 1.15 GHz to 1.4 GHz, ensuring superior communication performance. The antenna features an N-type male connector mount and is constructed as a portable whip style with tilt capability. It supports standards including 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN. The component is RoHS3 compliant and classified under ECCN EAR99.
Antennas RF Feature Summary
- Omni-directional radiation pattern for consistent signal coverage
- Portable whip design with tilt functionality for flexible installation
- Robust rubber duck construction suitable for wireless environments
Antennas RF Applications
- WLAN infrastructure deployment
- Bluetooth device connectivity
- ISM band industrial communications
- 802.11b/g network extensions
Antennas RF Procurement Notes
Verify the specific model suffix NM indicates an N-type male connector when sourcing replacements. Confirm RoHS3 compliance status matches project requirements. Ensure the operating frequency range aligns with the intended application bandwidth. Check packaging specifications against storage guidelines.
Antennas RF Selection Notes
Select this model when an N-type male interface is required for 2.4 GHz wireless systems. Consider the physical dimensions and tilt feature for spatial constraints. Evaluate compatibility with existing RF chain components. Verify environmental ratings for outdoor or harsh industrial settings.
Antennas RF Part Context
This antenna belongs to the HyperLink Wireless series by L-com, focusing on industrial-grade connectivity solutions. It complements the company's portfolio of cables, connectors, and adapters. The product line emphasizes reliability for wired and wireless data transmission in demanding applications.
Antennas RF Replacement Considerations
HG2405RD-RTP serves as a variant with an RP-TNC connector instead of the N-type male interface. Ensure connector type compatibility before substitution. Verify that the electrical characteristics remain identical for seamless integration.
