HG2405RD-RSP

Antennas RF Overview

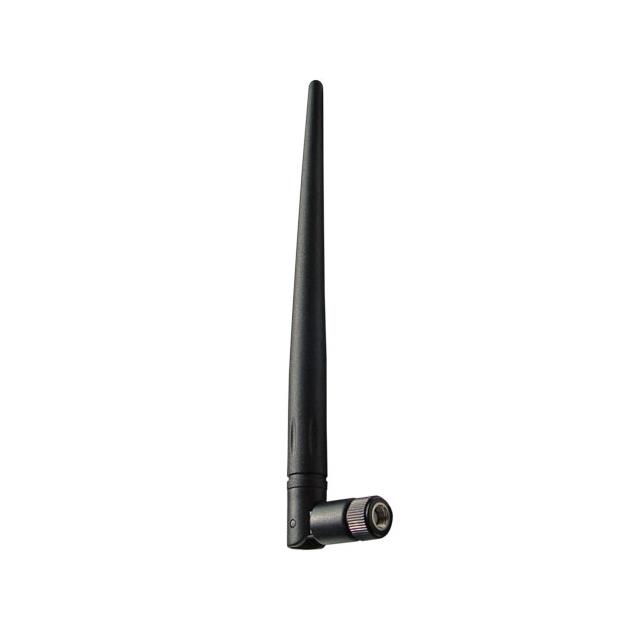

The HG2405RD-RSP is a HyperLink Wireless omnidirectional rubber duck antenna designed for the 2.4 GHz to 2.5 GHz frequency range, supporting 802.11b/g, Bluetooth, ISM, Wi-Fi, and WLAN protocols. It features a vertical orientation with a coaxial sleeve design providing broad 360-degree coverage. The unit offers a gain of 5.5 dBi and utilizes an RP-SMA plug connector interface.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for wide 360-degree coverage
• Rubber duck construction with coaxial sleeve design
• Vertical polarization optimized for wireless LAN applications

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• Bluetooth device connectivity
• ISM band wireless communication systems

Antennas RF Procurement Notes

Verify the specific connector type required for your application, as datasheets indicate both RP-SMA and SMA variants exist within similar model lines. Confirm that the Reverse Polarity SMA (RP-SMA) plug matches your host device's jack configuration to ensure proper physical mating and signal integrity without adapter usage.

Antennas RF Selection Notes

Select this component when a compact, vertically oriented antenna is needed for 2.4 GHz wireless environments. The 5.5 dBi gain provides enhanced range compared to standard 2 dBi units. Ensure the RP-SMA interface aligns with existing cabling or equipment ports before procurement.

Antennas RF Part Context

This part belongs to the L-Com HyperLink brand series of wireless antennas. It is categorized under outdoor and multiprotocol antennas suitable for various RF applications. The product line focuses on reliable performance in multi-point wireless setups requiring broad coverage.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RP-SMA interfaces if cross-referencing with other manufacturers' rubber duck antennas.
