HG2405RD-RTP

Antennas RF Overview

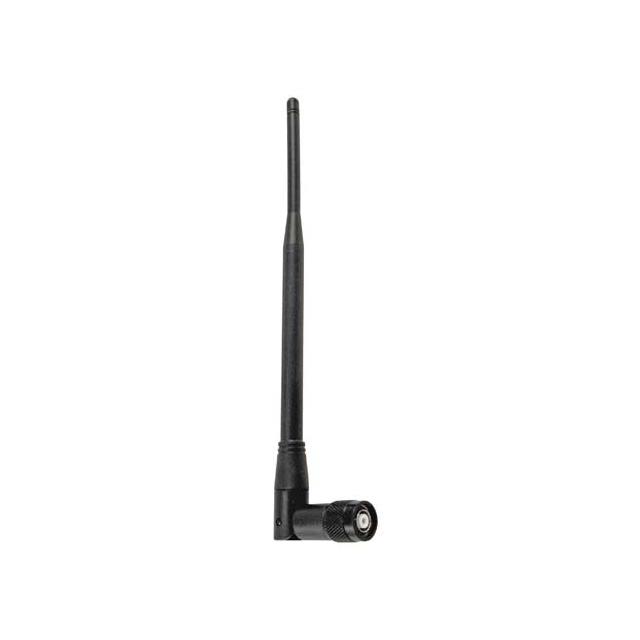

The L-com HG2405RD-RTP is a 2.4 GHz omnidirectional rubber duck antenna designed for ISM band applications. It operates within the 2.4GHz to 2.5GHz frequency range with a center frequency of 2.45GHz. The component provides 5dBi gain and features an RP-TNC connector for installation. It has a maximum height of 8.200 inches (208.28mm) and maintains a VSWR of 2. This antenna supports 802.11b/g, Bluetooth, Wi-Fi, and WLAN protocols.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for general coverage needs
• Flexible rubber duck construction allows for easy mounting and positioning
• Integrated RP-TNC connector simplifies connection to compatible radio equipment

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• Bluetooth device connectivity systems
• WLAN access point installations
• ISM band wireless communication links

Antennas RF Procurement Notes

Verify that the RP-TNC connector interface matches the receiving equipment port specifications. Confirm the required gain level of 5dBi meets system link budget requirements. Ensure the physical dimensions fit the intended mounting location. Check RoHS3 compliance status if environmental regulations apply to the project scope.

Antennas RF Selection Notes

Choose this model when a flexible, low-profile antenna is needed for 2.4 GHz operations. The RP-TNC interface is standard for many consumer-grade wireless devices. Consider the 5dBi gain as a balance between size and performance. Evaluate the 8.2-inch height against spatial constraints in the installation environment.

Antennas RF Part Context

This part belongs to the HG series of RF antennas from L-com. It is specifically engineered for the UHF frequency group, covering the 2GHz to 3GHz spectrum. The design targets economical yet high-performance solutions for short-range wireless communications.

Antennas RF Replacement Considerations

The HG2405RD-NM serves as a substitute option featuring an N-type connector instead of RP-TNC. Both parts share identical electrical characteristics and physical form factor. Select the NM variant only if the system requires an N-connector interface.
