HG2405SD-135-NF

Antennas RF Overview

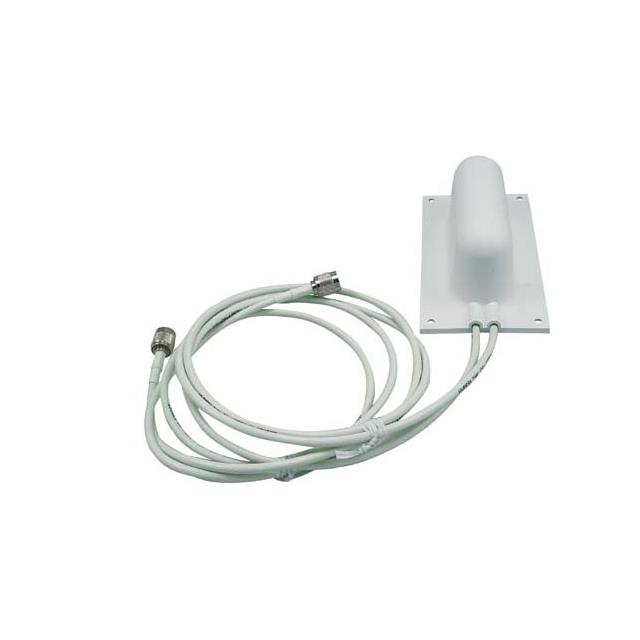

The L-com HG2405SD-135-NF is a 2.4 GHz patch antenna designed for Wi-Fi applications supporting 802.11b/g/n standards. It provides 5 dBi gain and features dual spatial diversity technology to enhance signal performance. The unit includes an N-type female connector and offers a wide 135-degree coverage angle in the H-plane. This compact design utilizes two dipole elements to improve overall system reliability.

Antennas RF Feature Summary

• Dual spatial diversity architecture utilizing two dipole elements
• Compact patch/panel form factor with 135-degree H-plane coverage
• Integrated N-type female connector interface

Antennas RF Applications

• Wi-Fi module integration
• Indoor wireless networking solutions
• Point-to-point communication systems

Antennas RF Procurement Notes

Verify the specific part number suffix against official L-com documentation to confirm connector type and cable length specifications. Ensure compatibility with existing RF interfaces before procurement. Cross-reference datasheets for precise mechanical dimensions and environmental ratings to confirm suitability for the intended installation environment.

Antennas RF Selection Notes

Select this model when dual spatial diversity is required to mitigate multipath interference in 2.4 GHz environments. The 135-degree beamwidth suits wide-angle coverage needs. Verify that the N-type female connector matches the receiving equipment interface requirements.

Antennas RF Part Context

This component belongs to the L-com HyperLink Wireless series of flat panel MIMO antennas. It is specifically engineered for 2.4 GHz operations, offering a balance between compact size and directional gain suitable for indoor deployment scenarios requiring reliable wireless connectivity.

Antennas RF Replacement Considerations

The HG2405P-135-NF is a related panel variant within the same product family. Verify connector type and mounting configuration differences before substitution.
